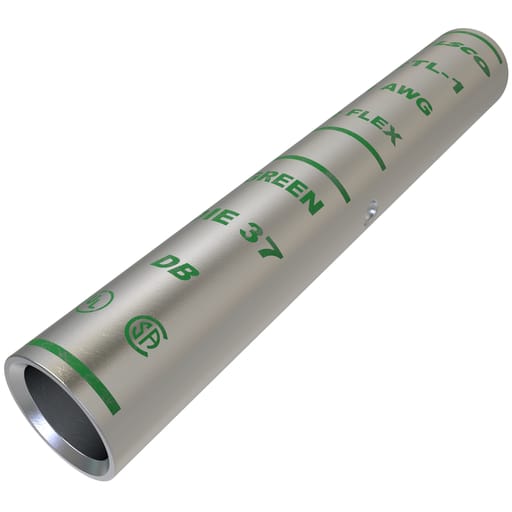

Ilsco - Ilsco CTL-1 SureCrimp® Copper Compression Sleeve, Conductor Size 1, Long Barrel, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669127850
Applications - For Splicer/Reducer
Catalog Number - CTL-1
Color - Silver
Conductor Size - 6-1 AWG
Packaging
1 ea
EAN
00783669127850
Part #
293071
Catalog #
CTL-1
Commercial reference
CTL-1
12-Digit UPC:
783669127850
Applications:
For Splicer/Reducer
Catalog Number:
CTL-1
Color:
Silver
Conductor Size:
6-1 AWG
ERP_productname:
ILS CTL-1 CU CMP 1 T UL CSA LONG SLEEVE
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Copper
Size:
L:2.875;W:0.468;H:0.468 IN
Sub Brand:
SureCrimp®
Tc Connection:
Compression
Type:
CTL
Voltage:
600 Volt
SoneparProductId:
SKU_US_25442206
Surecrimp Copper Compression Sleeve, Long Barrel, Compression connection, Copper material, Tin plated connector,Long barrel, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 1 Str, 1 conductors, no sight window, flex conductor range 2 G,H,I,K,M,DLO, rated for 35 kV, die color code Green, primary color Silver, die index I-37,
