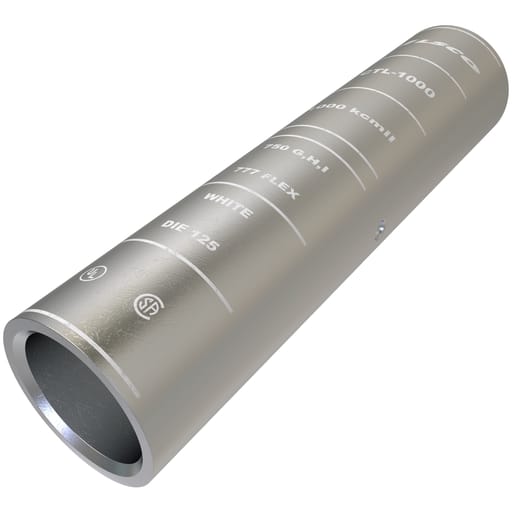

Ilsco - ILSCO CTL-1000 CU CMP 1000 T UL CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669153484
Applications - For Splicer/Reducer
Catalog Number - CTL-1000
Color - Silver
Conductor Size - 1000 kcmil
Packaging
1 ea
EAN
00783669153484
Part #
226776
Catalog #
CTL-1000
Commercial reference
CTL-1000
12-Digit UPC:
783669153484
Applications:
For Splicer/Reducer
Catalog Number:
CTL-1000
Color:
Silver
Conductor Size:
1000 kcmil
ERP_productname:
ILS CTL-1000 CU CMP 1000 T UL CSA
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Copper
Size:
L:6.125;W:1.5;H:1.5 IN
Sub Brand:
SureCrimp®
Tc Connection:
Compression
Type:
UL Model
Voltage:
600 Volt
SoneparProductId:
SKU_US_29749078
Surecrimp Copper Compression Sleeve, Long Barrel, Compression connection, Copper material, Tin plated connector,Long barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 1000 kcmil, 1 conductors, no sight window, flex conductor range 750 G,H,I 777.7 DLO, rated for 35 kV, die color code White, primary color Silver, die index I-125,
