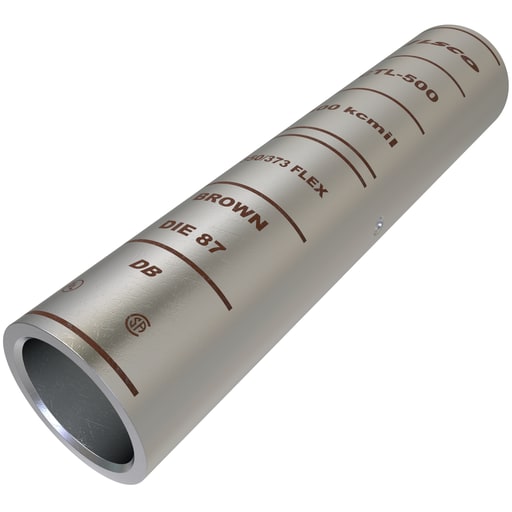

Ilsco - Ilsco CTL-500 SureCrimp® Copper Compression Sleeve, Conductor Size 500, Long Barrel, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669148985
Applications - For Splicer/Reducer
Catalog Number - CTL-500
Color - Silver
Conductor Size - 500 kcmil
Packaging
1 ea
EAN
00783669148985
Part #
335267
Catalog #
CTL-500
Commercial reference
CTL-500
12-Digit UPC:
783669148985
Applications:
For Splicer/Reducer
Catalog Number:
CTL-500
Color:
Silver
Conductor Size:
500 kcmil
ERP_productname:
ILS CTL-500 CU CMP 500 T UL CSA
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Copper
Size:
L:4.625;W:1.062;H:1.062 IN
Sub Brand:
SureCrimp®
Tc Connection:
Compression
Type:
UL Model
Voltage:
600 Volt
SoneparProductId:
SKU_US_25540268
Surecrimp Copper Compression Sleeve, Long Barrel, Compression connection, Copper material, Tin plated connector,Long barrel, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 500 kcmil, 1 conductors, no sight window, flex conductor range 350 G,H,I,K,M 373.7 DLO, rated for 35 kV, die color code Brown, primary color Silver, die index I-87,
