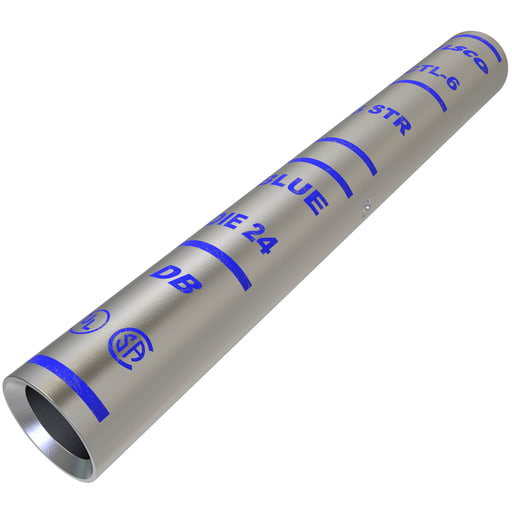

Ilsco - Ilsco CTL-6 SureCrimp® Copper Compression Sleeve, Conductor Size 6, Long Barrel, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669127553
Applications - Grounding and Bonding
Catalog Number - CTL-6
Color - Blue
Conductor Size - 6 AWG
Packaging
1 ea
EAN
00783669127553
Part #
293079
Catalog #
CTL-6
Commercial reference
CTL-6
12-Digit UPC:
783669127553
Applications:
Grounding and Bonding
Catalog Number:
CTL-6
Color:
Blue
Conductor Size:
6 AWG
ERP_productname:
ILS CTL-6 CU CMP 6 T UL CSA LONG SLEEVE
Family Brand Name:
Ilsco
Finish:
Tin Plated
Length:
2-3/8 Inch
Material:
Copper
Size:
L:2.375;W:0.312;H:0.312 IN
Sub Brand:
SureCrimp®
Tc Connection:
Compression
Type:
UL Model
Voltage:
600 Volt
SoneparProductId:
SKU_US_25331923
Surecrimp Copper Compression Sleeve, Long Barrel, Compression connection, Copper material, Tin plated connector,Long barrel, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 6 Sol, 6 Str, 1 conductors, no sight window, flex conductor range 6 G,H,I,K,M,DLO, rated for 35 kV, die color code Blue, primary color Silver, die index I-24,
