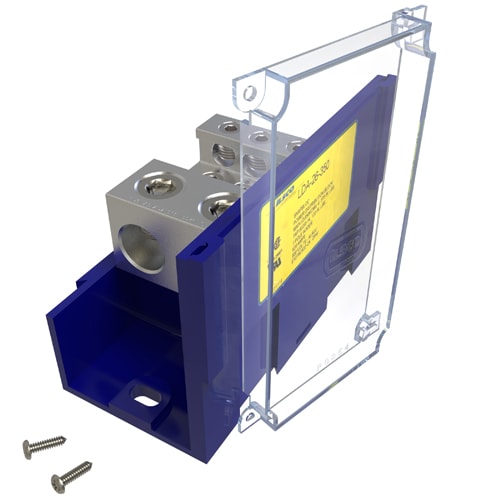

Ilsco - Ilsco LDA-26-350 Snapbloc Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 350-6, Load Range 2/0-14, 2 Ports Per Pole Line Side, 6 Ports Per Pole Load Side, Adder Block, UL, CSA, Includes Cover
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669595314
Amperage - CU:620 AMP
Applications - Power Distribution Block, Modular Design
Catalog Number - LDA-26-350
Color - Blue
Packaging
1 ea
EAN
00783669595314
Part #
344192
Catalog #
LDA-26-350
Commercial reference
LDA-26-350
12-Digit UPC:
783669595314
Amperage:
CU:620 AMP
Applications:
Power Distribution Block, Modular Design
Catalog Number:
LDA-26-350
Color:
Blue
ERP_productname:
ILS LDA-26-350 AL MECH 1SP(P)2X350-6 (S)2/0-14 T UR CSA
Enclosure:
Thermoplastic
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
8
Sub Brand:
Snapbloc
Tc Connection:
Mechanical
Type:
LDB
Voltage:
600 Volt
SoneparProductId:
SKU_US_26678436
Snapbloc Power Distribution Block, Modular Design, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 2/0 Str - 14 Str, 8 conductors, 8 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/16 Internal Hex, rated for 600 V, primary color Blue, 1 poles, 2 ports per pole primary, 6 ports per pole secondary,
