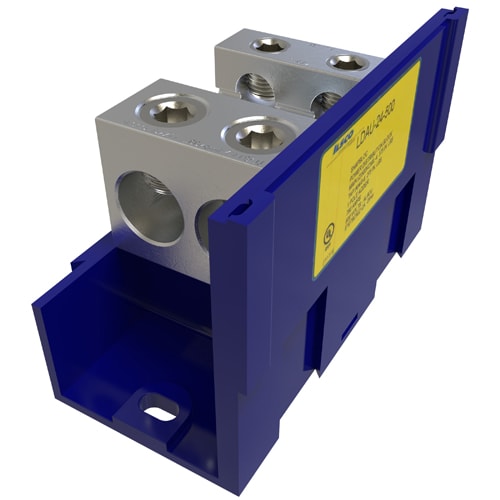

Ilsco - ILSCO LDAU-24-500 AL MECH (P)2x 500
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669594768
Amperage - CU:760 AMP
Applications - Power Distribution Block, Modular Design
Catalog Number - LDAU-24-500
Color - Blue
Packaging
1 ea
EAN
00783669594768
Part #
241516
Catalog #
LDAU-24-500
Commercial reference
LDAU-24-500
12-Digit UPC:
783669594768
Amperage:
CU:760 AMP
Applications:
Power Distribution Block, Modular Design
Catalog Number:
LDAU-24-500
Color:
Blue
ERP_productname:
ILS LDAU-24-500 AL MECH (P)2X 500-4 (S)4/0-6T UL 1 SIDE
Enclosure:
Thermoplastic
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
6
Sub Brand:
Snapbloc
Tc Connection:
Mechanical
Type:
LDB:SNAP BLOCKS UL
Voltage:
600 Volt
SoneparProductId:
SKU_US_29524540
Snapbloc Power Distribution Block, Modular Design, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1953 Listed, Copper/Aluminum Primary Conductor 500 kcmil - 4 Str, Copper/Aluminum Secondary Conductor 4/0 Str - 6 Str, 6 conductors, 5 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap 5/16 Internal Hex, rated for 600 V, primary color Blue, 1 poles, 2 ports per pole primary, 4 ports per pole secondary,
