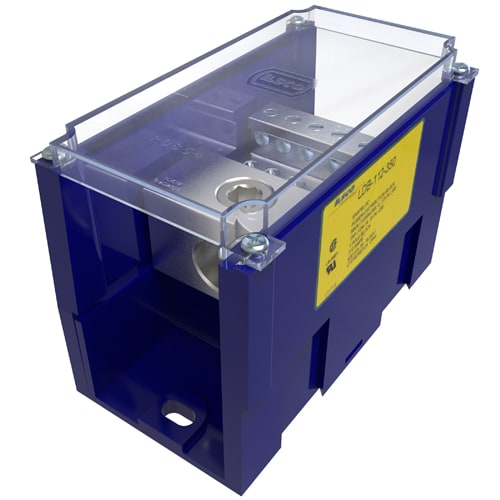

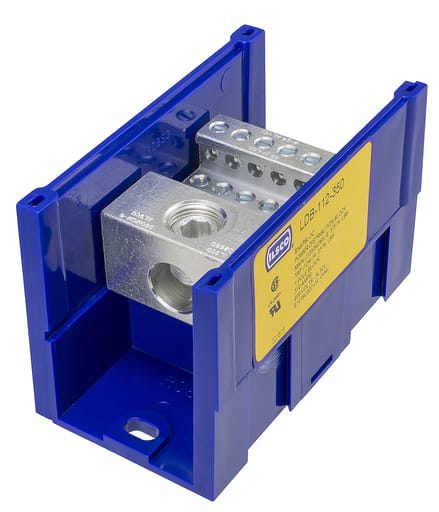

Ilsco - Ilsco LDB-112-350 Snapbloc Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 350-6, Load Range 4-14, 1 Port Per Pole Line Side, 12 Ports Per Pole Load Side, 1 Pole, UL, CSA, Includes Cover
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669595406
Amperage - CU:310 AMP
Applications - Power Distribution Block, Modular Design
Catalog Number - LDB-112-350
Color - Blue
Packaging
1 ea
EAN
00783669595406
Part #
171441
Catalog #
LDB-112-350
Commercial reference
LDB-112-350
12-Digit UPC:
783669595406
Amperage:
CU:310 AMP
Applications:
Power Distribution Block, Modular Design
Catalog Number:
LDB-112-350
Color:
Blue
ERP_productname:
ILS LDB-112-350 AL MECH (P)2X350-6 (S)4-14 T UR CSA DBL
Enclosure:
Thermoplastic
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
13
Sub Brand:
Snapbloc
Tc Connection:
Mechanical
Type:
LDB
Voltage:
600 Volt
SoneparProductId:
SKU_US_31106934
Snapbloc Power Distribution Block, Modular Design, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 4 Str - 14 Str, 13 conductors, 13 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap Slotted, rated for 600 V, primary color Blue, 1 poles, 1 ports per pole primary, 12 ports per pole secondary,
