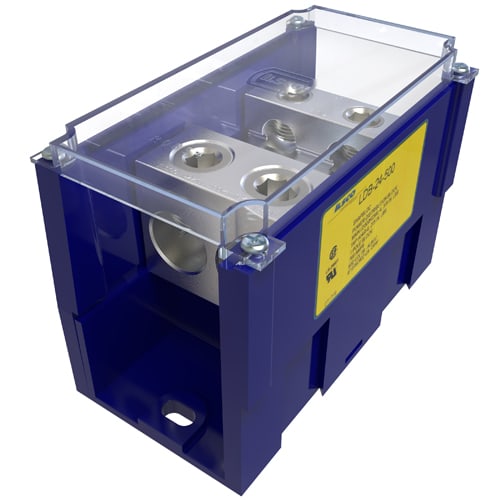

Ilsco - Ilsco LDB-24-500 Snapbloc Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 500-4, Load Range 4/0-6, 2 Ports Per Pole Line Side, 4 Ports Per Pole Load Side, 1 Pole, UL, CSA, Includes Cover
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669595253
Amperage - 760 Amp
Applications - Tap Connector
Catalog Number - LDB-24-500
Color - Blue
Packaging
1 ea
EAN
00783669595253
Part #
291355
Catalog #
LDB-24-500
Commercial reference
LDB-24-500
12-Digit UPC:
783669595253
Amperage:
760 Amp
Applications:
Tap Connector
Catalog Number:
LDB-24-500
Color:
Blue
Conductor Size:
4 AWG-500 kcmil/6-4/0 AWG
ERP_productname:
ILS LDB-24-500 AL MECH (P)2X500-4 (S)4/0-6 T URCSA 2 S
Enclosure:
Thermoplastic
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
6
Sub Brand:
SnapBloc®
Tc Connection:
Mechanical
Type:
LDB
Voltage:
600 Volt
SoneparProductId:
SKU_US_25326262
Snapbloc Power Distribution Block, Modular Design, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 4 Str, Copper/Aluminum Secondary Conductor 4/0 Str - 6 Str, 6 conductors, 6 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap 5/16 Internal Hex, rated for 600 V, primary color Blue, 1 poles, 2 ports per pole primary, 4 ports per pole secondary,
