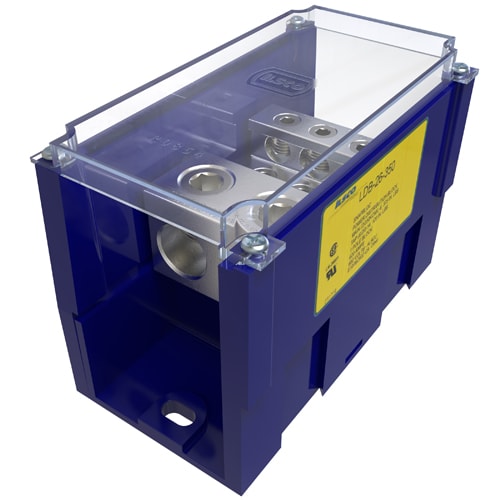

Ilsco - Ilsco LDB-26-350 Snapbloc Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 350-6, Load Range 2/0-14, 2 Ports Per Pole Line Side, 6 Ports Per Pole Load Side, 1 Pole, UL, CSA, Includes Cover
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669595307
Amperage - 620 Amp
Applications - Tap Connector
Catalog Number - LDB-26-350
Color - Blue
Packaging
1 ea
EAN
00783669595307
Part #
311337
Catalog #
LDB-26-350
Commercial reference
LDB-26-350
12-Digit UPC:
783669595307
Amperage:
620 Amp
Applications:
Tap Connector
Catalog Number:
LDB-26-350
Color:
Blue
Conductor Size:
6 AWG-350 kcmil/14-2/0 AWG
ERP_productname:
ILS LDB-26-350 AL MECH 2SP(P)2X350-6 (S)2/0-14 T UR CSA
Enclosure:
Thermoplastic
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
8
Sub Brand:
SnapBloc®
Tc Connection:
Mechanical
Type:
LDB
Voltage:
600 Volt
SoneparProductId:
SKU_US_26149324
Snapbloc Power Distribution Block, Modular Design, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 2/0 Str - 14 Str, 8 conductors, 8 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/16 Internal Hex, rated for 600 V, primary color Blue, 1 poles, 2 ports per pole primary, 6 ports per pole secondary,
