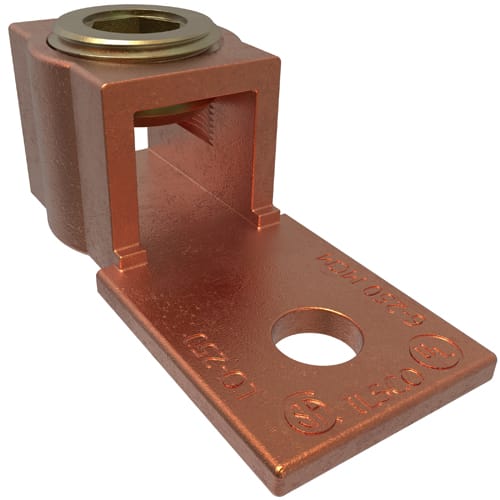

Ilsco - Ilsco LO-250 Copper Mechanical Lug, Conductor Range 250-6, 1 Port, 1 Hole, 3/8in Bolt Size, Seamless, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669569834
Applications - For use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used for Copper Conductor Only
Catalog Number - LO-250
Color - Copper
Conductor Material - Copper
Packaging
1 ea
EAN
00783669569834
Part #
278946
Catalog #
LO-250
Commercial reference
LO-250
12-Digit UPC:
783669569834
Applications:
For use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used for Copper Conductor Only
Catalog Number:
LO-250
Color:
Copper
Conductor Material:
Copper
Conductor Size:
6 AWG-250 kcmil
ERP_productname:
ILS LO-250 CU MEC 250-6 21/64 B UL CSA
Family Brand Name:
Ilsco
Finish:
Electrolytic
Heights:
0.88 Inch
Length:
2.275 Inch
Material:
Copper
Number of Conductors:
1
Number of Holes:
1 Hole
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
LO:1&2 HOLES STRAIGHT
Voltage:
35 Volt
Widths:
0.985 in
SoneparProductId:
SKU_US_26480955
