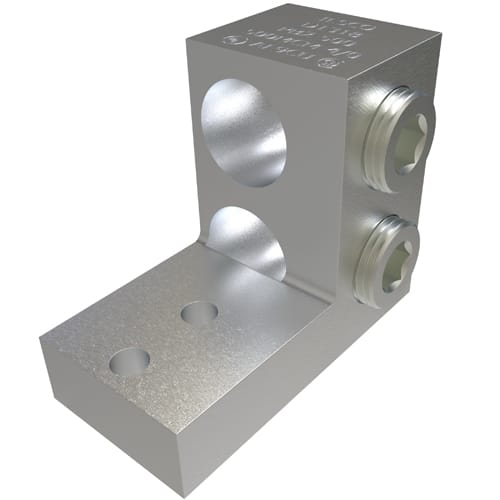

Ilsco - Ilsco PB2-500 Aluminum Panelboard Lug, Dual Rated, Conductor Range 500-4/0, 2 Ports, 2 Holes, 1/4in Bolt Size, 11/16in Hole Spacing, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669184266
Applications - Panelboard Lug
Catalog Number - PB2-500
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669184266
Part #
165660
Catalog #
PB2-500
Commercial reference
PB2-500
12-Digit UPC:
783669184266
Applications:
Panelboard Lug
Catalog Number:
PB2-500
Color:
Silver
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS PB2-500 AL MEC 500-4/0 9/32-11/16 T UL
Family Brand Name:
Ilsco
Finish:
Tin Plated
Heights:
2-3/8 Inch
Length:
2.96 Inch
Material:
Aluminum
Number of Conductors:
2
Number of Holes:
2 Hole
Number of Ports:
2
Sub Brand:
ILSCO
Tc Connection:
Mechanical
Type:
PB:PANELBOARD STACK LUG
Voltage:
35 Volt
Widths:
1.438 in
SoneparProductId:
SKU_US_25363470
ILSCO Panelboard Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 1/4 in, mounting hole spacing 0.688 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 4/0 Str, 2 conductors, 2 ports/wireways, Drive Type Main 3/8 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,
