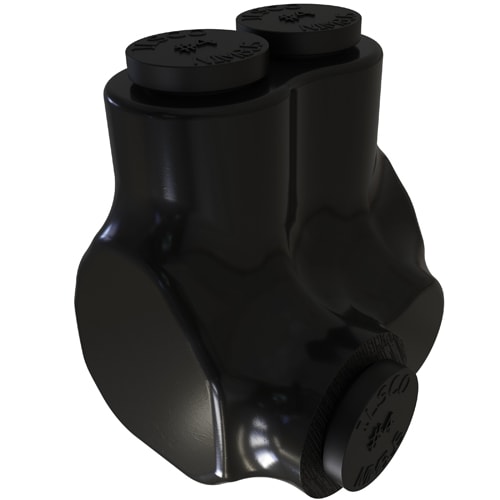

Ilsco - Ilsco PBTO-4 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector Offset, Conductor Range 4-14, 2 Ports, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669078923
Amperage - 95 Amp
Applications - Insulated Butt Splice
Catalog Number - PBTO-4
Color - Black
Packaging
1 ea
EAN
00783669078923
Part #
343411
Catalog #
PBTO-4
Commercial reference
PBTO-4
12-Digit UPC:
783669078923
Amperage:
95 Amp
Applications:
Insulated Butt Splice
Catalog Number:
PBTO-4
Color:
Black
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS PBTO-4 INSUL AL MECH (2) 4-14 OFFSETT UL CSA
Family Brand Name:
Ilsco
Finish:
Tin Plated
Heights:
1.379 Inch
Length:
1.168 Inch
Material:
Aluminum
Number of Conductors:
2
Number of Ports:
2
Sub Brand:
Nimbus®
Tc Connection:
Mechanical
Type:
PBT:INS BLK SPL/OFFSET
Voltage:
600 Volt
Widths:
1.394 in
SoneparProductId:
SKU_US_25333163
Nimbus Insulated in-line splicer-reducer connectors, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 2 conductors, 2 ports/wireways, Plastisol insulation, Drive Type Main 1/8 Internal Hex, rated for 600 V, primary color Black, 1 poles,
