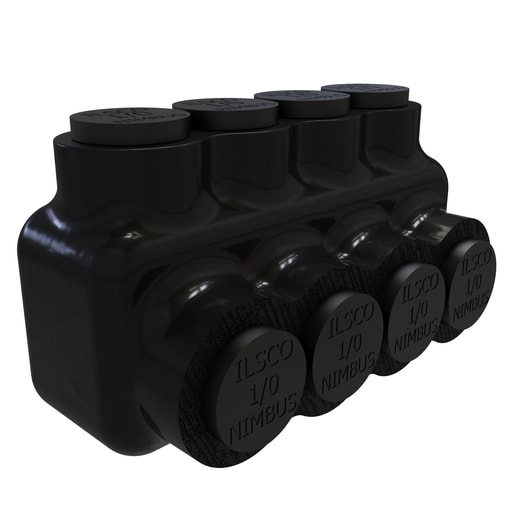

Ilsco - Ilsco PBTS-4-1/0 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 1/0-14, 4 Ports, Single Sided Entry, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669079289
Amperage - 170 Amp
Applications - Connecting Tap
Catalog Number - PBTS-4-1/0
Color - Black
Packaging
1 ea
EAN
00783669079289
Part #
260741
Catalog #
PBTS-4-1/0
Commercial reference
PBTS-4-1/0
12-Digit UPC:
783669079289
Amperage:
170 Amp
Applications:
Connecting Tap
Catalog Number:
PBTS-4-1/0
Color:
Black
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS PBTS-4-1/0 INSUL AL MECH (4) 1/0-14 SGL TUL CSA
Family Brand Name:
Ilsco
Finish:
Tin Plated
Heights:
1.627 Inch
Length:
2.873 Inch
Material:
Aluminum
Number of Conductors:
4
Number of Ports:
4
Sub Brand:
Nimbus®
Tc Connection:
Mechanical
Type:
One Side, PBTS, Insulated
Voltage:
600 Volt
Widths:
1.599 in
SoneparProductId:
SKU_US_25364269
Nimbus Insulated Multi-Tap Connector, Single Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 4 conductors, 4 ports/wireways, Plastisol insulation, Drive Type Main 3/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,
