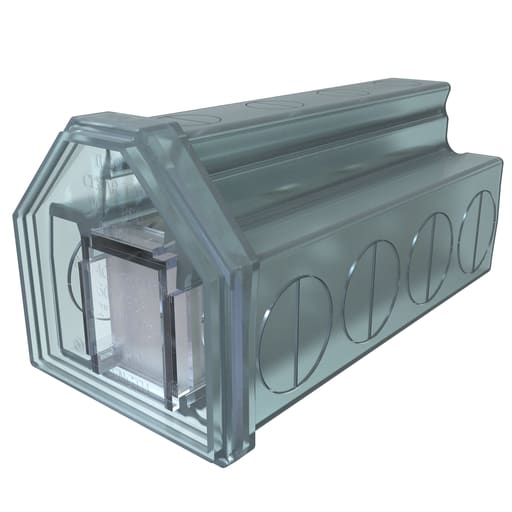

Ilsco - Ilsco PCT-4-800 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 850-250, 4 Ports, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669700749
Amperage - CU:555
Applications - Connecting Tap
Catalog Number - PCT-4-800
Color - Clear
Packaging
1 ea
EAN
00783669700749
Part #
279459
Catalog #
PCT-4-800
Commercial reference
PCT-4-800
12-Digit UPC:
783669700749
Amperage:
CU:555
Applications:
Connecting Tap
Catalog Number:
PCT-4-800
Color:
Clear
Conductor Material:
Aluminum,Copper
Conductor Size:
800-250 kcmil
ERP_productname:
ILS PCT-4-800 AL MEC (4) 800-250 T UL INS
Family Brand Name:
Ilsco
Finish:
Tin Plated
Heights:
3.389 Inch
Length:
6.918 Inch
Material:
Aluminum
Number of Conductors:
4
Number of Ports:
4
Sub Brand:
ClearTap®
Tc Connection:
Mechanical
Type:
PCT, Insulated
Voltage:
600 Volt
Widths:
3.428 in
SoneparProductId:
SKU_US_25616797
Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 800 kcmil - 250 kcmil, Contains DE-OX®, 4 conductors, 4 ports/wireways, Plastisol insulation, Drive Type Main 1/2 Internal Hex, rated for 600 V, primary color Clear, 1 poles,
