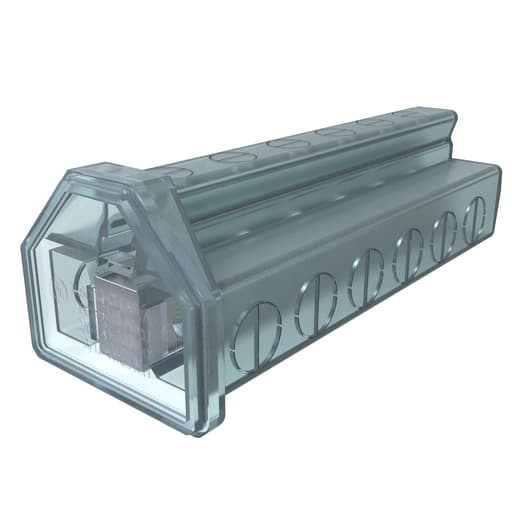

Ilsco - Ilsco PCT-6-2/0 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 2/0-14, 6 Ports, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669700442
Amperage - CU:195
Applications - Connecting Tap
Catalog Number - PCT-6-2/0
Color - Clear
Packaging
1 ea
EAN
00783669700442
Part #
279372
Catalog #
PCT-6-2/0
Commercial reference
PCT-6-2/0
12-Digit UPC:
783669700442
Amperage:
CU:195
Applications:
Connecting Tap
Catalog Number:
PCT-6-2/0
Color:
Clear
Conductor Material:
Aluminum,Copper
Conductor Size:
14-2/0 AWG
ERP_productname:
ILS PCT-6-2/0 AL MEC (6)2/0-14 T INS UL CSA
Family Brand Name:
Ilsco
Finish:
Tin Plated
Heights:
1.919 Inch
Length:
5.81 Inch
Material:
Aluminum
Number of Conductors:
6
Number of Ports:
6
Sub Brand:
ClearTap®
Tc Connection:
Mechanical
Type:
PCT, Insulated
Voltage:
600 Volt
Widths:
2.252 in
SoneparProductId:
SKU_US_25461382
Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2/0 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 6 conductors, 6 ports/wireways, Plastisol insulation, Drive Type Main 3/16 Internal Hex, rated for 600 V, primary color Clear, 1 poles,
