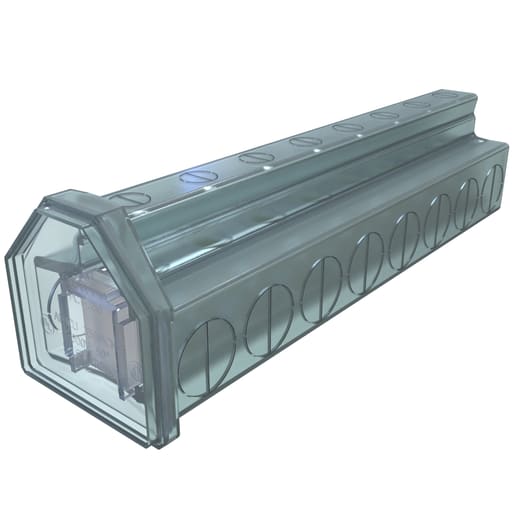

Ilsco - Ilsco PCT-8-350 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 350-6, 8 Ports, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669700626
Amperage - CU:350
Applications - Connecting Tap
Catalog Number - PCT-8-350
Color - Clear
Packaging
1 ea
EAN
00783669700626
Part #
279378
Catalog #
PCT-8-350
Commercial reference
PCT-8-350
12-Digit UPC:
783669700626
Amperage:
CU:350
Applications:
Connecting Tap
Catalog Number:
PCT-8-350
Color:
Clear
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS PCT-8-350 AL MEC (8)350-6 T INS UL CSA
Family Brand Name:
Ilsco
Finish:
Tin Plated
Heights:
2.648 Inch
Length:
9.873 Inch
Material:
Aluminum
Number of Conductors:
8
Sub Brand:
ClearTap®
Tc Connection:
Mechanical
Type:
PCT, Insulated
Voltage:
600 Volt
Widths:
2.66 in
SoneparProductId:
SKU_US_25459288
Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Contains DE-OX®, 8 conductors, 8 ports/wireways, Plastisol insulation, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Clear, 1 poles,
