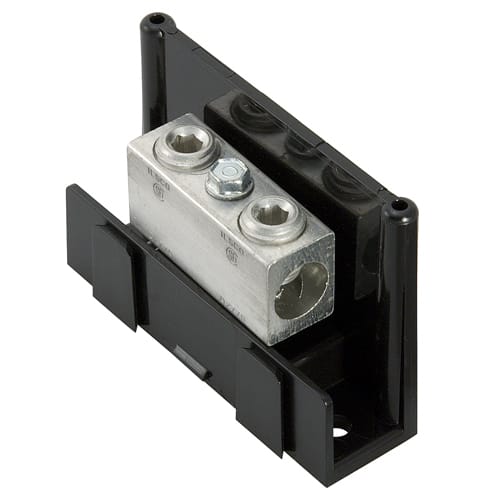

Ilsco - Ilsco PDA-11-2/0-1 Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 2/0-14, Load Range 2/0-14, 1 Port Per Pole Line Side, 1 Port Per Pole Load Side, Adder Block, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669711349
Amperage - 175 Amp/Pole
Applications - Tap Connector
Catalog Number - PDA-11-2/0-1
Color - Black
Packaging
1 ea
EAN
00783669711349
Part #
108760
Catalog #
PDA-11-2/0-1
Commercial reference
PDA-11-2/0-1
12-Digit UPC:
783669711349
Amperage:
175 Amp/Pole
Applications:
Tap Connector
Catalog Number:
PDA-11-2/0-1
Color:
Black
Conductor Size:
14-2/0 AWG
ERP_productname:
ILS PDA-11-2/0-1 PWR DISTR BLOCK
Enclosure:
Lexan
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
2
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
Small
Voltage:
600 Volt
SoneparProductId:
SKU_US_26148303
ILSCO Power Distribution Block, Modular Design, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size #10 in, mounting hole spacing 2.25 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2/0 Str - 14 Str and 10 Sol - 14 Sol, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 2/0 Str - 14 Str, 2 conductors, Drive Type Main 3/16 Internal Hex, Drive Type Tap 3/16 Internal Hex, rated for 600 V, primary color Black, 1 poles, 1 ports per pole primary, 1 ports per pole secondary,
