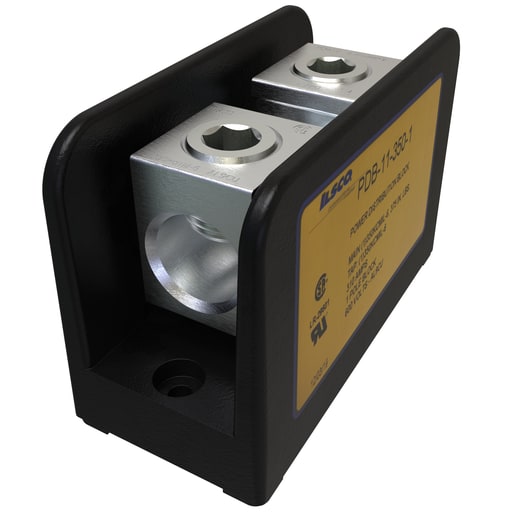

Ilsco - Ilsco PDB-11-350-1 Power Distribution Block, Dual Rated, Line Conductor Range 350-6, Load Range 350-6, 1 Port Per Pole Line Side, 1 Port Per Pole Load Side, 1 Pole, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669710793
Amperage - CU:310 AMP
Applications - Power Distribution Block
Catalog Number - PDB-11-350-1
Color - Black
Packaging
1 ea
EAN
00783669710793
Part #
337092
Catalog #
PDB-11-350-1
Commercial reference
PDB-11-350-1
12-Digit UPC:
783669710793
Amperage:
CU:310 AMP
Applications:
Power Distribution Block
Catalog Number:
PDB-11-350-1
Color:
Black
Conductor Size:
6 AWG-350 kcmil
ERP_productname:
ILS PDB-11-350-1 AL MEC LINE350-6 LOAD350-6 T UR CSA 1 PO
Enclosure:
Valox
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
2
Number of Poles:
1 Pole
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
PDB:PWR DIST BLK AL/CU
Voltage:
600 Volt
SoneparProductId:
SKU_US_25523159
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size #10 in, mounting hole spacing 3.375 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 350 kcmil - 6 Str, 2 conductors, 2 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/8 Internal Hex, rated for 600 V, primary color Black, 1 poles, 1 ports per pole primary, 1 ports per pole secondary,
