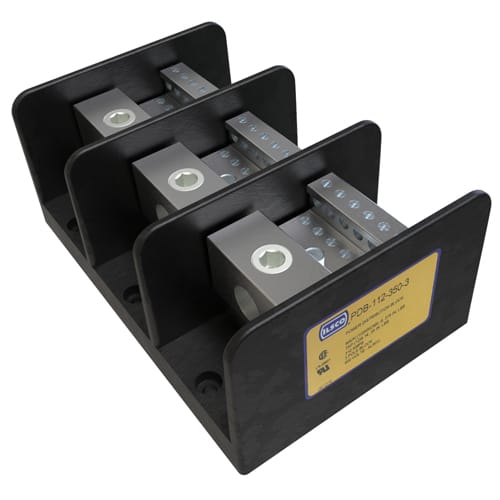

Ilsco - Ilsco PDB-112-350-3 Power Distribution Block, Dual Rated, Line Conductor Range 350-6, Load Range 4-14, 1 Port Per Pole Line Side, 12 Ports Per Pole Load Side, 3 Pole, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669710595
Amperage - 310 Amp/Pole
Applications - Tap Connector
Catalog Number - PDB-112-350-3
Color - Black
Packaging
1 ea
EAN
00783669710595
Part #
160946
Catalog #
PDB-112-350-3
Commercial reference
PDB-112-350-3
12-Digit UPC:
783669710595
Amperage:
310 Amp/Pole
Applications:
Tap Connector
Catalog Number:
PDB-112-350-3
Color:
Black
Conductor Size:
6 AWG-350 kcmil/14-4 AWG
ERP_productname:
ILS PDB-112-350-3 AL MEC LINE350-6 LOAD(12)4-14 T UR CSA 3
Enclosure:
Valox
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
13
Number of Poles:
3 Pole
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
PDB:PWR DIST BLK AL/CU
Voltage:
600 Volt
SoneparProductId:
SKU_US_26173027
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 4 Str - 14 Str, 13 conductors, 39 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap Slotted, rated for 600 V, primary color Black, 3 poles, 1 ports per pole primary, 12 ports per pole secondary,
