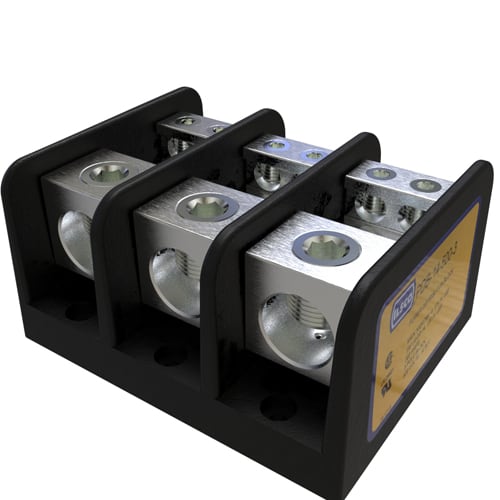

Ilsco - Ilsco PDB-14-500-3 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 2/0-14, 1 Port Per Pole Line Side, 4 Ports Per Pole Load Side, 3 Pole, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669711141
Amperage - CU:310 AMP
Applications - Power Distribution Block
Catalog Number - PDB-14-500-3
Color - Black
Packaging
1 ea
EAN
00783669711141
Part #
256654
Catalog #
PDB-14-500-3
Commercial reference
PDB-14-500-3
12-Digit UPC:
783669711141
Amperage:
CU:310 AMP
Applications:
Power Distribution Block
Catalog Number:
PDB-14-500-3
Color:
Black
ERP_productname:
ILSCO PDB-14-500-3 PWR DISTR BLOCK
Enclosure:
Valox
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
5
Number of Poles:
3 Pole
Sub Brand:
ILSCO
Tc Connection:
Mechanical
Type:
PDB:PWR DIST BLK AL/CU
Voltage:
600 Volt
SoneparProductId:
SKU_US_26635287
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size #10 in, mounting hole spacing 3.375 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 4 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 2/0 Str - 14 Str, 5 conductors, 15 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/16 Internal Hex, rated for 600 V, primary color Black, 3 poles, 1 ports per pole primary, 4 ports per pole secondary,
