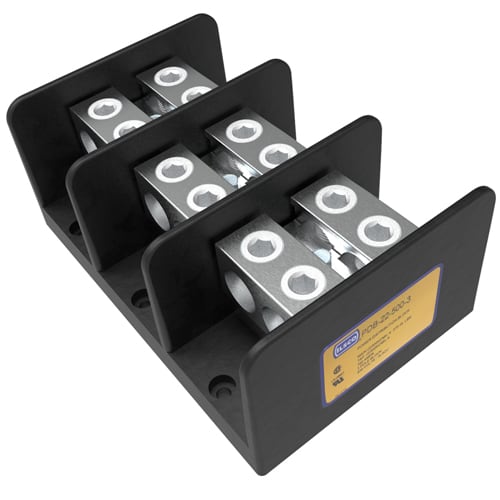

Ilsco - Ilsco PDB-22-500-3 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 500-4, 2 Ports Per Pole Line Side, 2 Ports Per Pole Load Side, 3 Pole, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669711073
Amperage - CU:760 AMP
Applications - Power Distribution Block
Catalog Number - PDB-22-500-3
Color - Black
Packaging
1 ea
EAN
00783669711073
Part #
388153
Catalog #
PDB-22-500-3
Commercial reference
PDB-22-500-3
12-Digit UPC:
783669711073
Amperage:
CU:760 AMP
Applications:
Power Distribution Block
Catalog Number:
PDB-22-500-3
Color:
Black
ERP_productname:
ILS PDB-22-500-3 AL MEC 3P LINE(2)500-4 LOAD(2)500-4T UR
Enclosure:
Valox
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
4
Number of Poles:
3 Pole
Sub Brand:
ILSCO
Tc Connection:
Mechanical
Type:
PDB:PWR DIST BLK AL/CU
Voltage:
600 Volt
SoneparProductId:
SKU_US_26512472
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 4 Str, Copper/Aluminum Secondary Conductor 500 kcmil - 4 Str, 4 conductors, 12 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/8 Internal Hex, rated for 600 V, primary color Black, 3 poles, 2 ports per pole primary, 2 ports per pole secondary,
