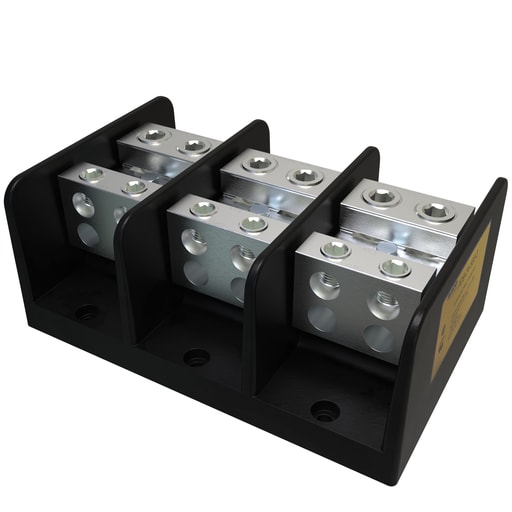

Ilsco - Ilsco PDB-24-500-3 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 4/0-6, 2 Ports Per Pole Line Side, 4 Ports Per Pole Load Side, 3 Pole, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669710717
Amperage - 760 Amp
Applications - Tap Connector
Catalog Number - PDB-24-500-3
Color - Black
Packaging
1 ea
EAN
00783669710717
Part #
287567
Catalog #
PDB-24-500-3
Commercial reference
PDB-24-500-3
12-Digit UPC:
783669710717
Amperage:
760 Amp
Applications:
Tap Connector
Catalog Number:
PDB-24-500-3
Color:
Black
Conductor Size:
4 AWG-500 kcmil/6-4/0 AWG
ERP_productname:
ILS PDB-24-500-3 AL MEC 3P LINE(2)500-4 LOAD(4)4/0-6T UR
Enclosure:
Valox
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
6
Number of Poles:
3 Pole
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
PDB:PWR DIST BLK AL/CU
Voltage:
600 Volt
SoneparProductId:
SKU_US_25210093
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 4 Str, Copper/Aluminum Secondary Conductor 4/0 Str - 6 Str, 6 conductors, Drive Type Main 3/8 Internal Hex, Drive Type Tap 5/16 Internal Hex, rated for 600 V, primary color Black, 3 poles, 2 ports per pole primary, 4 ports per pole secondary,
