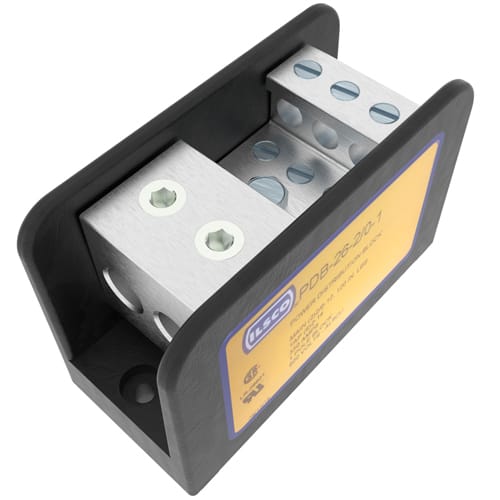

Ilsco - Ilsco PDB-26-2/0-1 Power Distribution Block, Dual Rated, Line Conductor Range 2/0-12, Load Range 2-14, 2 Ports Per Pole Line Side, 6 Ports Per Pole Load Side, 1 Pole, UL, CSA

CopyCopy
Ilsco - Ilsco PDB-26-2/0-1 Power Distribution Block, Dual Rated, Line Conductor Range 2/0-12, Load Range 2-14, 2 Ports Per Pole Line Side, 6 Ports Per Pole Load Side, 1 Pole, UL, CSA

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783669711165

  • Amperage - 350 Amp

  • Applications - Tap Connector

  • Catalog Number - PDB-26-2/0-1

  • Color - Black

Packaging

  • 1 ea

EAN

00783669711165

Part #

311336

Catalog #

PDB-26-2/0-1

Commercial reference

PDB-26-2/0-1

12-Digit UPC:

783669711165

Amperage:

350 Amp

Applications:

Tap Connector

Catalog Number:

PDB-26-2/0-1

Color:

Black

Conductor Size:

14-2/0 AWG/14-2 AWG

ERP_productname:

ILS PDB-26-2/0-1 AL MEC 1P LINE(2)2/0-14 LOAD(6)2-14T UR

Enclosure:

Valox

Family Brand Name:

Ilsco

Finish:

Tin Plated

Material:

Aluminum

Number of Conductors:

8

Number of Poles:

1 Pole

Sub Brand:

ClearChoice

Tc Connection:

Mechanical

Type:

PDB:PWR DIST BLK AL/CU

Voltage:

600 Volt

SoneparProductId:

SKU_US_26673452

ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size #10 in, mounting hole spacing 3.375 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2/0 Str - 12 Str and 10 Sol - 14 Sol, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 2 Str - 14 Str, 8 conductors, Drive Type Main 3/16 Internal Hex, Drive Type Tap Slotted, rated for 600 V, primary color Black, 1 poles, 2 ports per pole primary, 6 ports per pole secondary,
