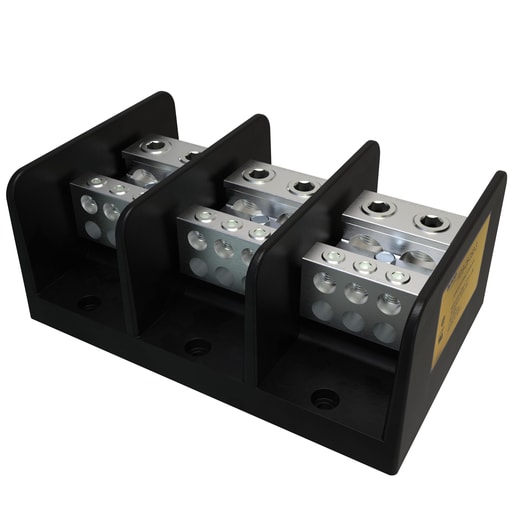

Ilsco - Ilsco PDB-26-350-3 Power Distribution Block, Dual Rated, Line Conductor Range 350-6, Load Range 2/0-14, 2 Ports Per Pole Line Side, 6 Ports Per Pole Load Side, 3 Pole, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669710472
Amperage - 620 Amp
Applications - Tap Connector
Catalog Number - PDB-26-350-3
Color - Black
Packaging
1 ea
EAN
00783669710472
Part #
318725
Catalog #
PDB-26-350-3
Commercial reference
PDB-26-350-3
12-Digit UPC:
783669710472
Amperage:
620 Amp
Applications:
Tap Connector
Catalog Number:
PDB-26-350-3
Color:
Black
Conductor Size:
6 AWG-350 kcmil/14-2/0 AWG
ERP_productname:
ILS PDB-26-350-3 AL MEC 3P LINE(2)350-6 LOAD(6)2/0-14 T
Enclosure:
Valox
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
8
Number of Poles:
3 Pole
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
PDB:PWR DIST BLK AL/CU
Voltage:
600 Volt
SoneparProductId:
SKU_US_26556344
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 2/0 Str - 14 Str, 8 conductors, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/16 Internal Hex, rated for 600 V, primary color Black, 3 poles, 2 ports per pole primary, 6 ports per pole secondary,
