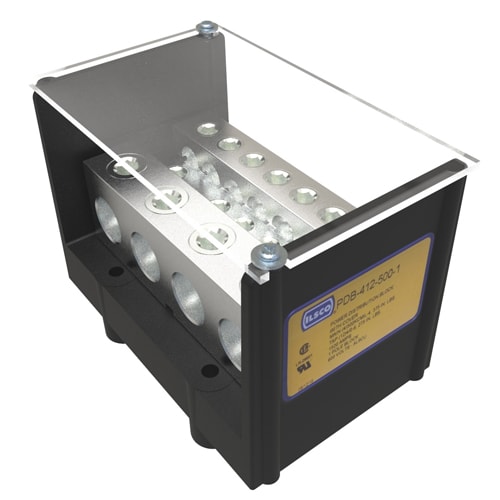

Ilsco - Ilsco PDB-412-500-1 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 4/0-6, 4 Ports Per Pole Line Side, 12 Ports Per Pole Load Side, 1 Pole, UL, CSA, Includes Cover
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669711486
Amperage - 1.52 kA
Applications - Tap Connector
Catalog Number - PDB-412-500-1
Color - Black
Packaging
1 ea
EAN
00783669711486
Part #
274268
Catalog #
PDB-412-500-1
Commercial reference
PDB-412-500-1
12-Digit UPC:
783669711486
Amperage:
1.52 kA
Applications:
Tap Connector
Catalog Number:
PDB-412-500-1
Color:
Black
Conductor Size:
4 AWG-500 kcmil/6-4/0 AWG
ERP_productname:
ILS PDB-412-500-1 AL MECH(P)(4)500-4 (S)(12)4/0-6 T UR CSA
Enclosure:
Valox
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
16
Number of Poles:
1 Pole
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
PDB:PWR DIST BLK AL/CU
Voltage:
600 Volt
SoneparProductId:
SKU_US_29765550
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 3 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 4 Str, Copper/Aluminum Secondary Conductor 4/0 Str - 6 Str, 16 conductors, Drive Type Main 3/8 Internal Hex, Drive Type Tap 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles, 4 ports per pole primary, 12 ports per pole secondary,
