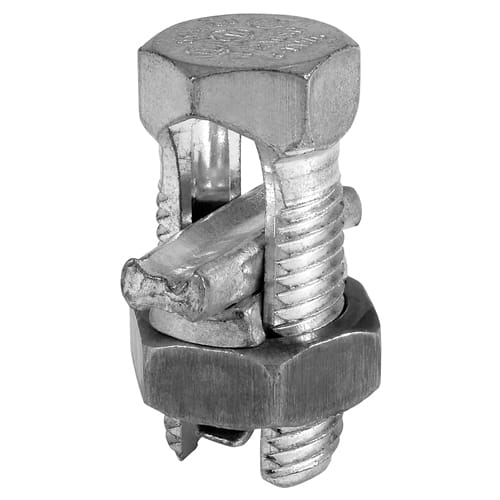

Ilsco - Ilsco SK-3 Copper Split Bolt, Dual Rated, Conductor Range for Equal Main & Tap 4-8 Sol AL, 2 Sol - 8 Sol CU, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669819045
Applications - Split Bolt
Catalog Number - SK-3
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669819045
Part #
292166
Catalog #
SK-3
Commercial reference
SK-3
12-Digit UPC:
783669819045
Applications:
Split Bolt
Catalog Number:
SK-3
Color:
Silver
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS SK-3 CU MEC(R)8SOL-2SOL(T)8SOLT ULCSA REA
Family Brand Name:
Ilsco
Finish:
Tin Plated
Heights:
0.81 Inch
Length:
1.55 Inch
Material:
Copper
Number of Conductors:
1
Overall Length:
1.547 in
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
SK:CU TIN PLATED S/B
Voltage:
35 Volt
Widths:
0.93 in
SoneparProductId:
SKU_US_25347108
ILSCO Split Bolt, Mechanical connection, Dual Rated, Copper material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65, C22.2 No. 188, Copper Primary Conductor 2 Str - 8 Str and 2 Sol - 8 Sol, Aluminum Primary Conductor 4 Str - 8 Str and 2 Sol - 8 Sol, Copper Secondary Conductor 8 Sol and 2 Str - 8 Str, Aluminum Secondary Conductor 8 Sol and 4 Str - 8 Str, 1 conductors, 1 ports/wireways, Drive Type Main 11/16, 13/16 External Hex, rated for 35 kV, primary color Silver, Conductor range for solid equal run & tap 2 Sol - 8 Sol CU, 4 Sol - 8 Sol AL, Conductor range for stranded equal run & tap 2 Sol - 8 Sol CU, 4 Sol - 8 Sol AL, 1 poles,
