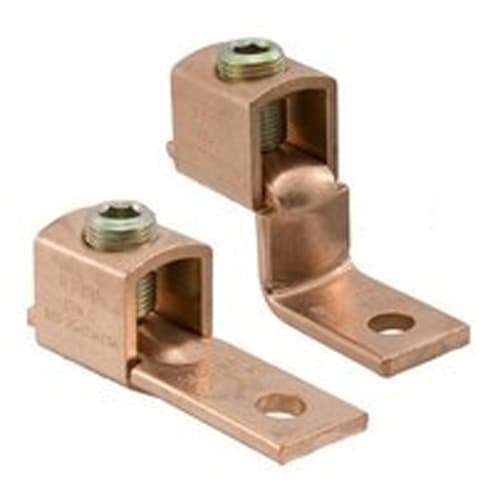

Ilsco - Ilsco SLS-225 Copper Mechanical Lug Straight, Conductor Range 4/0-2, 1 Port, 1 Hole, 5/16in Bolt Size, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669823998
Applications - For Terminating Connector
Catalog Number - SLS-225
Color - Copper
ERP_productname - ILS SLS-225 ILSCO 4/0-2 CU MECHANICAL LUG
Packaging
1 ea
EAN
00783669823998
Part #
299909
Catalog #
SLS-225
Commercial reference
SLS-225
12-Digit UPC:
783669823998
Applications:
For Terminating Connector
Catalog Number:
SLS-225
Color:
Copper
ERP_productname:
ILS SLS-225 ILSCO 4/0-2 CU MECHANICAL LUG
Family Brand Name:
Ilsco
Material:
Copper
Number of Conductors:
1
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
SLU, Offset Tongue, Straight
Voltage:
2000 Volt
SoneparProductId:
SKU_US_26547451
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 5/16 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 4/0 Str - 2 Str, 1 conductors, 1 ports/wireways, Drive Type Main 7/32 Internal Hex, rated for 35 kV, primary color Copper, 1 poles,
