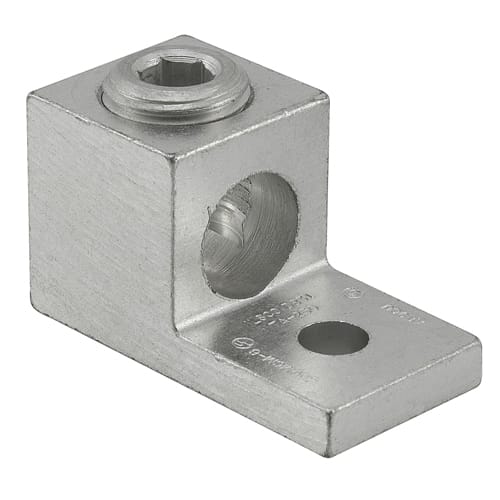

Ilsco - Ilsco TA-250 Aluminum Mechanical Lug, Conductor Range 250-6, 1 Port, 1 Hole, 5/16in Bolt Size, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669889420
Applications - Terminating Connector
Catalog Number - TA-250
Color - Silver
Conductor Size - 6 AWG-250 kcmil
Packaging
1 ea
EAN
00783669889420
Part #
104159
Catalog #
TA-250
Commercial reference
TA-250
12-Digit UPC:
783669889420
Applications:
Terminating Connector
Catalog Number:
TA-250
Color:
Silver
Conductor Size:
6 AWG-250 kcmil
ERP_productname:
ILS TA-250 6-250MCM ALCU LUG
Family Brand Name:
Ilsco
Finish:
Tin Plated
Heights:
1.122 Inch
Length:
1.984 Inch
Material:
Aluminum
Number of Conductors:
1
Number of Holes:
1 Hole
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
TA:1 CONDUCTOR AL/CU
Voltage:
35 Volt
Widths:
0.99 in
SoneparProductId:
SKU_US_25333302
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 5/16 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles
