Ilsco - Ilsco USPA-500SS-DB USPA-500SS-DB
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669941128
Applications - For Copper and Aluminum Conductor
Catalog Number - USPA-500SS-DB
Color - Black
Conductor Size - 10 AWG-500 kcmil
Packaging
1 ea
EAN
00783669941128
Part #
211707
Catalog #
USPA-500SS-DB
Commercial reference
USPA-500SS-DB
12-Digit UPC:
783669941128
Applications:
For Copper and Aluminum Conductor
Catalog Number:
USPA-500SS-DB
Color:
Black
Conductor Size:
10 AWG-500 kcmil
ERP_productname:
ILS USPA-500SS-DB AL MEC INS (A)500-2 (B)500-2 UL CSA
Family Brand Name:
Ilsco
Finish:
Wax
Material:
Aluminum
Number of Conductors:
2
Overall Length:
9.812 in
Size:
5/16 in Hex
Sub Brand:
ILSCO
Tc Connection:
Mechanical
Type:
Watertight
Voltage:
600 Volt
SoneparProductId:
SKU_US_26153311

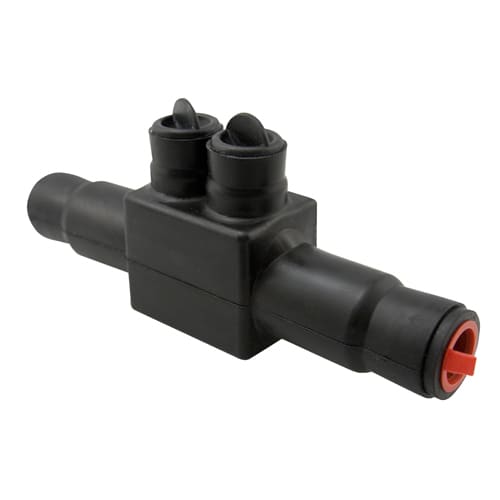

ILSCO Watertight Underground In-Line Splice, Mechanical connection, Dual Rated, Aluminum material, Wax plated connector, UL 486D Listed, C22.2 No. 198.2, Copper/Aluminum Primary Conductor 500 kcmil - 10 Str, 2 conductors, 2 ports/wireways, EPDM insulation, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,
