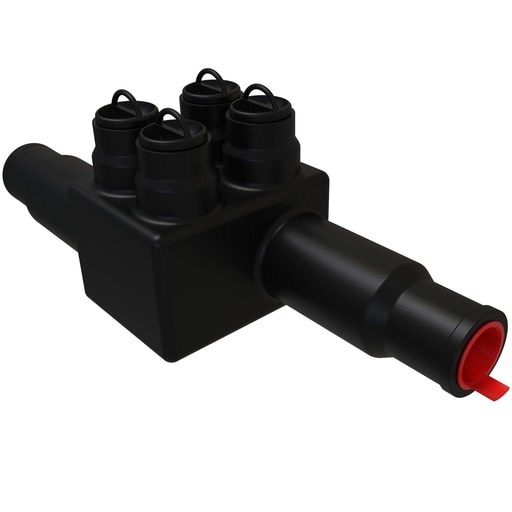

Ilsco - Ilsco USPA-750SS-DB Watertight Underground In-Line Splice, Dual Rated, Direct Bury, Conductor Range 750-2, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669941142
Applications - Watertight Underground In-Line Splice
Catalog Number - USPA-750SS-DB
Color - Black
Conductor Size - 2 AWG-750 kcmil
Packaging
1 ea
EAN
00783669941142
Part #
276898
Catalog #
USPA-750SS-DB
Commercial reference
USPA-750SS-DB
12-Digit UPC:
783669941142
Applications:
Watertight Underground In-Line Splice
Catalog Number:
USPA-750SS-DB
Color:
Black
Conductor Size:
2 AWG-750 kcmil
ERP_productname:
ILS USPA-750SS-DB AL MEC INS (A)750-2 (B)750-2 UL CSA
Family Brand Name:
Ilsco
Finish:
Wax
Material:
Aluminum
Number of Conductors:
2
Overall Length:
10.23 in
Sub Brand:
SafetySub®
Tc Connection:
Mechanical
Type:
In-Line
Voltage:
600 Volt
SoneparProductId:
SKU_US_30064305
ILSCO Watertight Underground In-Line Splice, Mechanical connection, Dual Rated, Aluminum material, Wax plated connector, UL 486D Listed, C22.2 No. 198.2, Copper/Aluminum Primary Conductor 750 kcmil - 2 Str, 2 conductors, 2 ports/wireways, EPDM insulation, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,
