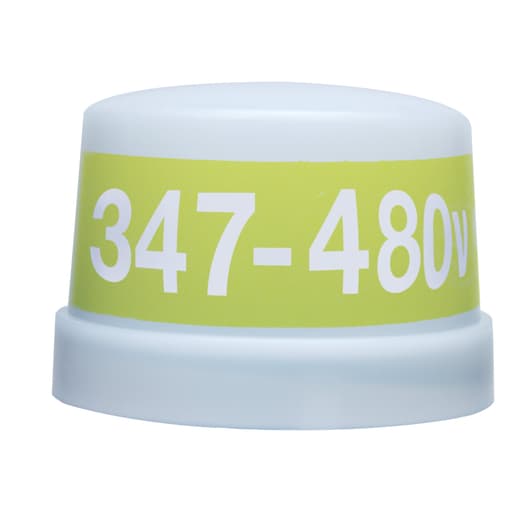

Intermatic, Inc - INT-MAT EK4537 NIGHTFOX Select Grad

CopyCopy
Intermatic, Inc - INT-MAT EK4537 NIGHTFOX Select Grad

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275148970

  • Amperage - 6 Amp

  • Applications - Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway Lighting, Landscape Lighting

  • Catalog Number - EK4537

  • Color - White With Yellow Band

Packaging

  • 1 ea

EAN

00078275148970

Part #

206710

Catalog #

EK4537

Commercial reference

EK4537

12-Digit UPC:

078275148970

Amperage:

6 Amp

Applications:

Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway Lighting, Landscape Lighting

Catalog Number:

EK4537

Color:

White With Yellow Band

Country of Origin:

Mexico

ERP_productname:

INTM EK4537 PHOTCONT-ELEC6AEBLST347-480V

Enclosure Rating:

3

Enclosure Type:

NEMA 3, NEMA 410

Family Brand Name:

Intermatic

Heights:

2-3/4 Inch

Input Voltage:

347-480 V

Sensor Type:

Photoelectric

Sub Brand:

NightFox™

Voltage:

347-480 VAC

SoneparProductId:

SKU_US_29645848

Designed to meet a 15-year service life, this photocontrol is LED-compatible and backed by an 8-year warranty. Features: Non-drift silicon light sensor with IR filter; DC relay with zero-crossing circuitry for extended life; All components meet 15-year life expectancy; Conformal coated PCB; Exceeds 10,000 ON/OFF switching cycles; Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC); 685 J MOV surge protection; High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched; NA
