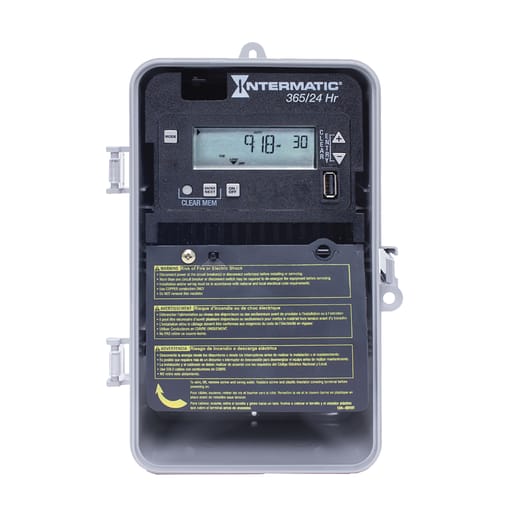

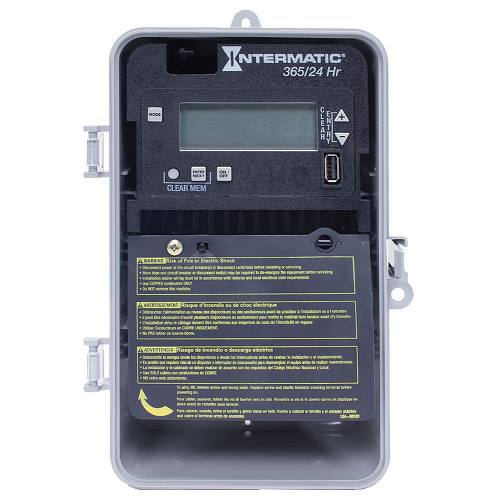

Intermatic, Inc - INT-MAT ET2115CP 24-Hour/365 Day 1-

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275148000

  • Amperage - 30 Amp

  • Applications - Indoor Lighting Control,Machinery & Pump Controls,Timing/Scheduling ON/OFF

  • Catalog Number - ET2115CP

  • Color - Gray

Packaging

  • 1 ea

EAN

00078275148000

Part #

179130

Catalog #

ET2115CP

Commercial reference

ET2115CP

12-Digit UPC:

078275148000

Amperage:

30 Amp

Applications:

Indoor Lighting Control,Machinery & Pump Controls,Timing/Scheduling ON/OFF

Catalog Number:

ET2115CP

Color:

Gray

Conductor Size:

14-8 AWG

Country of Origin:

Mexico

Depths:

4 Inch

ERP_productname:

INTM ET2115CP T/S-ELEC,1CH,24HR,3R PLAS ENC

Enclosure:

Type 3R Plastic

Family Brand Name:

NA

Heights:

10 Inch

Mounting Type:

Wall Mount

Number of Circuits:

1

Number of Poles:

1 Pole

Tc Connection:

Wire Lead

Type:

Electronic

Voltage:

120-277 VAC

Widths:

6.5 in

Wire Size:

18-10 AWG

SoneparProductId:

SKU_US_29611576

The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application. Features: 100-hour supercapacitor eliminates the need for batteries.; Up to 96 set points or events.; Up to 50 holiday blocks with schedule capabilities.; Automatic input voltage selection from 120 to 277 VAC, 60 Hz.; Additional mode of operation turns the ON/OFF buttons into 2-hour overrides.; Configurable outputs allow the control of various voltages and applications.; Relays incorporate zero-crossing technology to extend the life of the control.; Non-volatile EEPROM memory protects programming indefinitely.; LED compatible.; USB port makes transferring and saving of schedules easy.
