Intermatic, Inc - INT-MAT H20S23Y2DG2 Surge Protectiv
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 078275152304
Applications - Distribution Panel,Service Entrance
Catalog Number - H20S23Y2DG2
Color - Gray
Country of Origin - USA
Packaging
1 ea
EAN
00078275152304
Part #
164479
Catalog #
H20S23Y2DG2
Commercial reference
H20S23Y2DG2
12-Digit UPC:
078275152304
Applications:
Distribution Panel,Service Entrance
Catalog Number:
H20S23Y2DG2
Color:
Gray
Country of Origin:
USA
Depths:
3.29 Inch
ERP_productname:
INTM H20S23Y2DG2 7MD 277/480V 3PH Y T2 EMI/RFI CRRT 200KA
Family Brand Name:
NA
Heights:
10.59 Inch
Widths:
5.25 in
SoneparProductId:
SKU_US_259788029

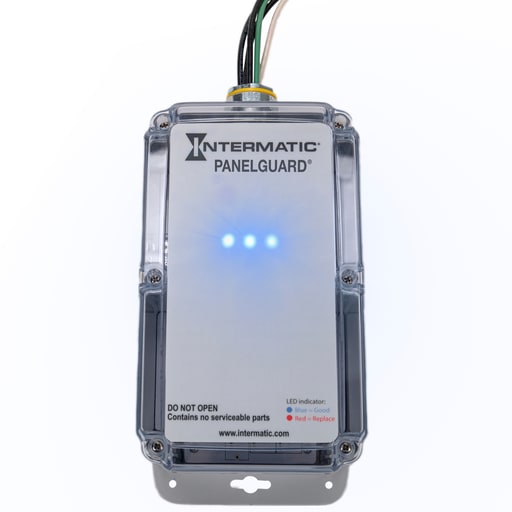

Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations. Features: Type 2 surge protection; Optional audible alarm and dry relay contacts; 7 Modes of protection; NFPA 780, UL 96A Lightning system protection compliant; NEMA 4X enclosure for indoor or outdoor installation; Individually integrated disconnect TPMOV surge protection technology; Optional advanced electrical noise filter (UL 1283); Blue LED status indicator per phase, red LED service indicator; UL Listed to ANSI/UL 1449 5th Edition; NA
