Intermatic, Inc - INT-MAT IOS-CMP-DT-U Commercial Gra

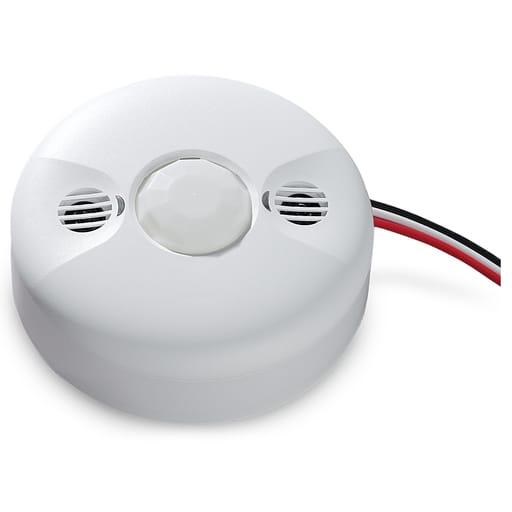

The IOS-CMP-DT-U Dual Technology Line Voltage Occupancy Sensors control loads based on occupancy and ambient light levels. It combines passive infrared (PIR) and ultrasonic technologies to help avoid false triggering while increasing presence detection. Selectable modes allow the sensor to turn load ON and hold it ON as long as either or both technologies detect occupancy. If no movement is detected for a user-specified time of 5 seconds to 30 minutes, the load is turned OFF. The occupancy sensor provides a 360. coverage pattern, up to 1600 ft2 (150m2) for PIR and 1000 ft2 (93m2) for Ultrasonic sensor. Features: Ultrasonic and PIR sensing improves presence detection while avoiding false triggers, even in areas with partitions and/or small movements; Zero-crossing technology for long life and performance; Coverage: 360±, 1600 ft2 PIR, 1000 ft2 Ultrasonic mounted on 8 to 11 ft ceiling; Adjustable ambient light sensor override; Requires neutral connection; Incandescent/Fluorescent/CFL/LED compatible; NA
