Intermatic, Inc - INT-MAT L10F13Y2DG1 Surge Protectiv
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 078275151956
Applications - Distribution Panel,Service Entrance
Catalog Number - L10F13Y2DG1
Color - Gray
Country of Origin - USA
Packaging
1 ea
EAN
00078275151956
Part #
143973
Catalog #
L10F13Y2DG1
Commercial reference
L10F13Y2DG1
12-Digit UPC:
078275151956
Applications:
Distribution Panel,Service Entrance
Catalog Number:
L10F13Y2DG1
Color:
Gray
Country of Origin:
USA
Depths:
3.29 Inch
ERP_productname:
INTM L10F13Y2DG1 SURGE PROTECTIVE DEVICE, 4-MODE, 277/480 VAC 3PH Y, TYPE 1, SURGE CURRENT RATING 100KA
Family Brand Name:
NA
Heights:
10.59 Inch
Widths:
5.25 in
SoneparProductId:
SKU_US_277637012

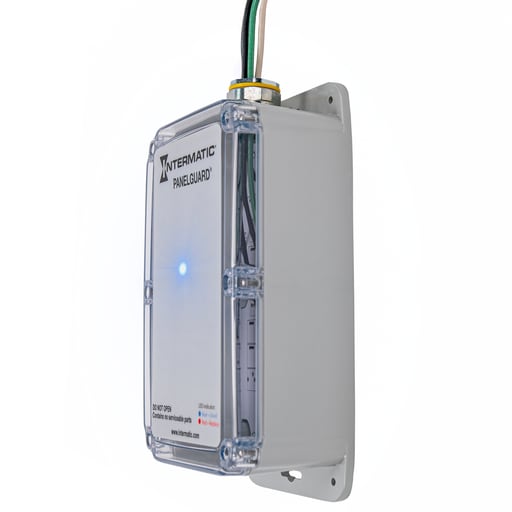

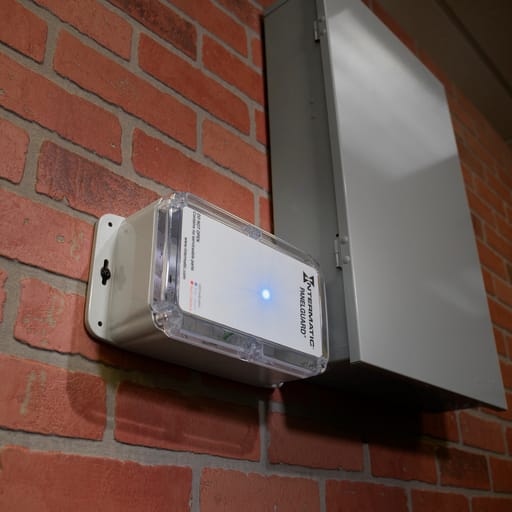

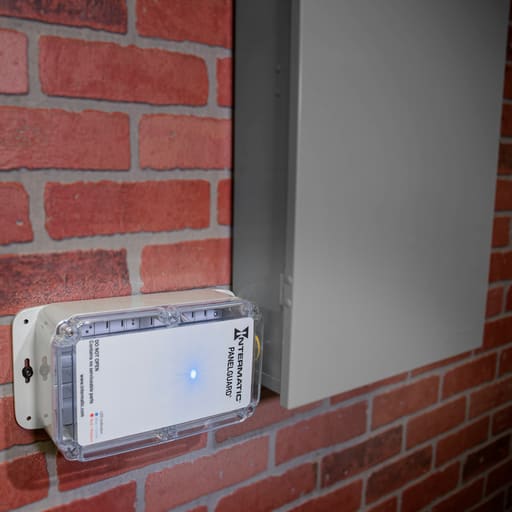

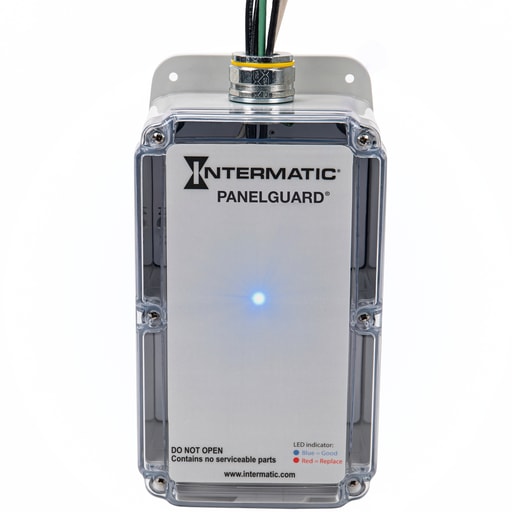

Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations. Features: Type 1 surge protection; Optional audible alarm and dry relay contacts; 4 Modes of protection; NA; NEMA 4X enclosure for indoor or outdoor installation; Individually integrated disconnect TPMOV surge protection technology; Blue LED protection status indicator, and red LED service indicator; UL Listed to ANSI/UL 1449 5th Edition
