Intermatic, Inc - INT-MAT L5F23Y2DG2 Surge Protective
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 078275151802
Applications - Distribution Panel,Service Entrance
Catalog Number - L5F23Y2DG2
Color - Gray
Country of Origin - USA
Packaging
1 ea
EAN
00078275151802
Part #
116270
Catalog #
L5F23Y2DG2
Commercial reference
L5F23Y2DG2
12-Digit UPC:
078275151802
Applications:
Distribution Panel,Service Entrance
Catalog Number:
L5F23Y2DG2
Color:
Gray
Country of Origin:
USA
Depths:
3.54 Inch
ERP_productname:
INTM L5F23Y2DG2 4MD 277/480V 3PH Y T2 EMI/RFI CRRT 50KA
Family Brand Name:
NA
Heights:
6.46 Inch
Widths:
4.81 in
SoneparProductId:
SKU_US_277725941

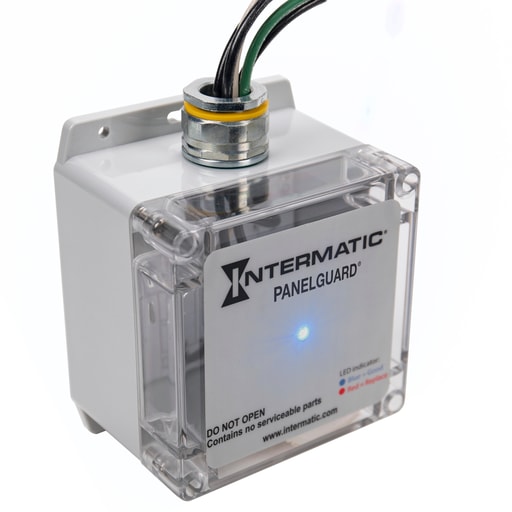

Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations. Features: Type 2 surge protection; Optional audible alarm and dry relay contacts; 4 Modes of protection; NA; NEMA 4X enclosure for indoor or outdoor installation; Individually integrated disconnect TPMOV surge protection technology; Optional advanced electrical noise filter (UL 1283); Blue LED protection status indicator, and red LED service indicator; UL Listed to ANSI/UL 1449 4th edition
