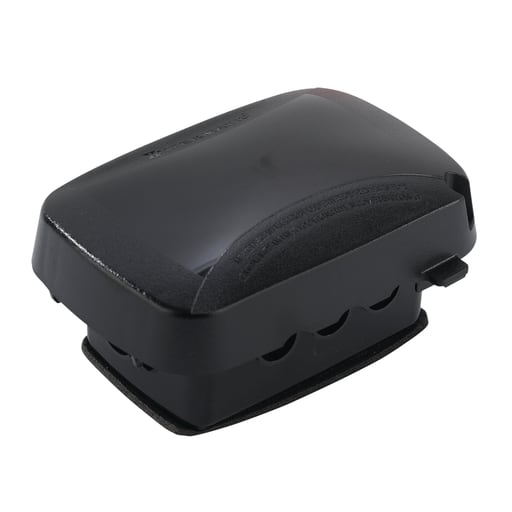

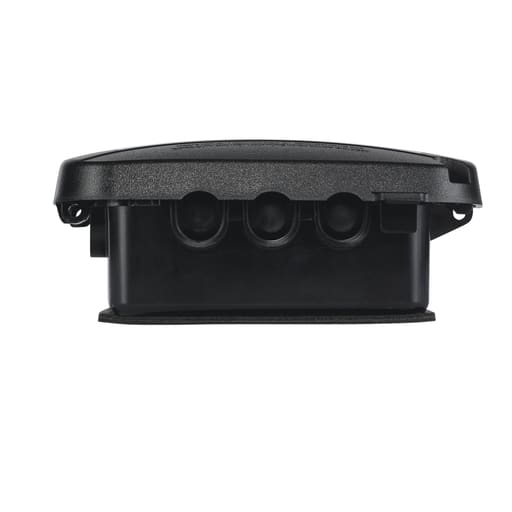

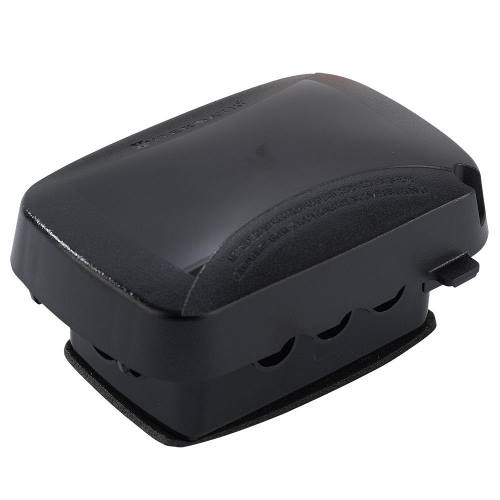

Intermatic, Inc - INT-MAT WP5100BL Extra-Duty Plastic

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275145665

  • Applications - Wet Location and Heavy Duty Application

  • Catalog Number - WP5100BL

  • Color - Black

  • Construction - Heavy-Duty Polycarbonate

Packaging

  • 1 ea

EAN

00078275145665

Part #

217036

Catalog #

WP5100BL

Commercial reference

WP5100BL

12-Digit UPC:

078275145665

Applications:

Wet Location and Heavy Duty Application

Catalog Number:

WP5100BL

Color:

Black

Construction:

Heavy-Duty Polycarbonate

Country of Origin:

Mexico

Depths:

2-3/4 Inch

ERP_productname:

INTM WP5100BL W/P CVR,SGL,VRT/HRZ 2.75 BLK

Family Brand Name:

Intermatic

Heights:

6.33 Inch

Length:

6-1/2 Inch

Material:

Polycarbonate

Mounting Type:

Vertical, Horizontal

Number of Gangs:

1 Gang

Shape:

Rectangle

Size:

2.75 DEPTH X 6.5 HEIGHT X 4.75 WIDTH IN, 69.85 DEPTH X 165.10 HEIGHT X 120.65 WIDTH MM

Type:

Rectangular, Receptacle

Widths:

4-3/4 in

SoneparProductId:

SKU_US_31636841

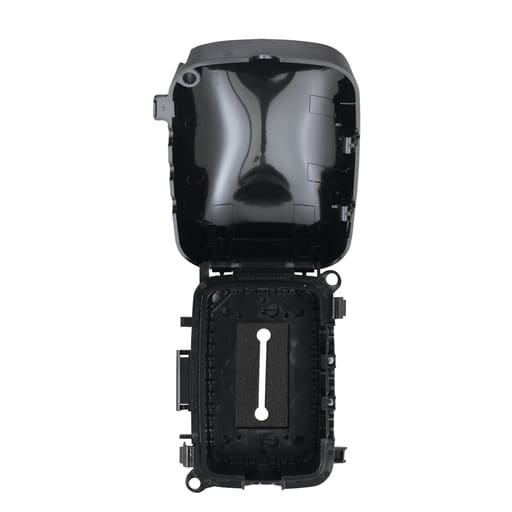

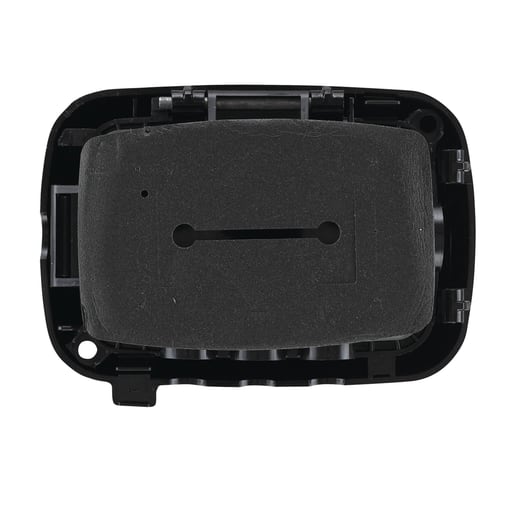

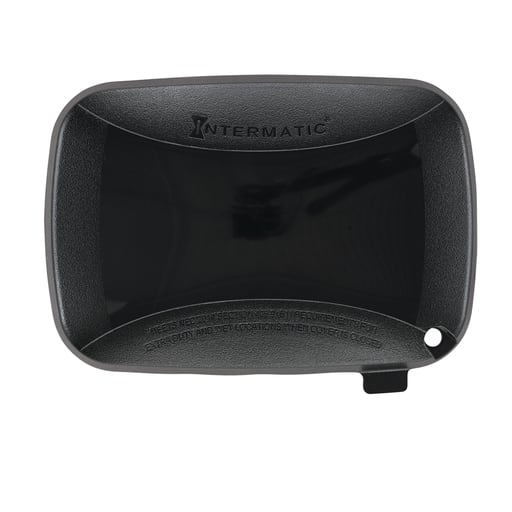

Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications. Features: Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications; CEC Article 26-702 Compliant; UL Certified for Type 3R outdoor enclosures; Meets requirements for cold impact testing: -60± F (-51± C); Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts; 1?8\" (3 mm) thick, neoprene gasket with slits for mounting screws; Lockable hasp: All models accept up to 1?4\" (6 mm) dia shank; Impact rated: 12 lbf. impact test to ensure cover remains intact; Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test; Warranty: 1-year limited
