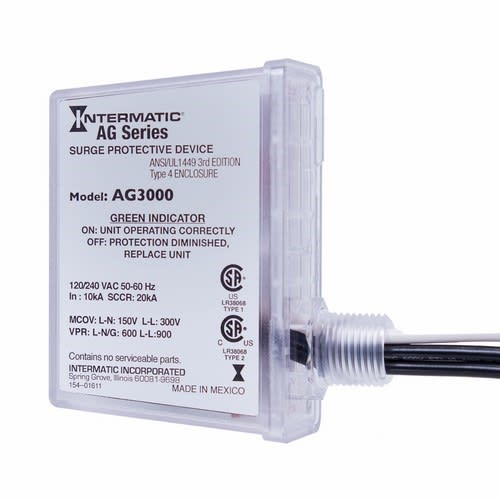

Intermatic, Inc - Intermatic AG3000 120/240 VAC 10 kA In Rating ANSI/UL1449 3rd Edition 1-Phase Surge Protection Device

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275130678

  • Applications - HVAC Equipment (AC/Furnaces)

  • Catalog Number - AG3000

  • Class - Surge Protection

  • Color - Clear

Packaging

  • 1 ea

EAN

00078275130678

Part #

210542

Catalog #

AG3000

Commercial reference

AG3000

12-Digit UPC:

078275130678

Applications:

HVAC Equipment (AC/Furnaces)

Catalog Number:

AG3000

Class:

Surge Protection

Color:

Clear

Country of Origin:

Mexico

Depths:

4.188 Inch

ERP_productname:

INTM AG3000 120/240 SINGLE PHASE SPD ANSI/UL1449 3RD

Enclosure Type:

Type 4X

Family Brand Name:

Intermatic

Finish:

Plastic

Heights:

3-7/8 Inch

Material:

Polycarbonate

Mounting Type:

Mount to panelboard or enclosure

Number of Phases:

1 Phase

Number of Poles:

3 Pole

Number of Wires:

5 Wire

Product Category:

Home Improvement & Commercial Supplies - Powerstrips, Surge Protectors & Extension Cords

Product Type:

Home Improvement & Commercial Supplies - Powerstrips, Surge Protectors & Extension Cords

Size:

1/2 IN - 20

Tc Connection:

18 in Lead

Type:

Type 1/Type 2

Voltage:

240 Volt

Widths:

1.625 in

SoneparProductId:

SKU_US_25782220

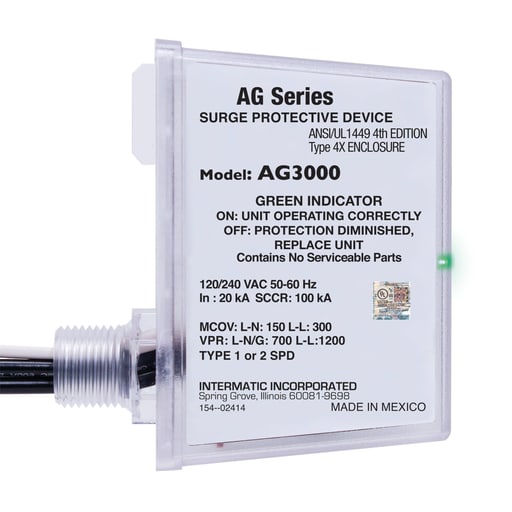

Power surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics, but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000 Surge Protective Device (SPD) is the perfect add-on for HVAC equipment. A green LED indicator provides the status of protection. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. UL Listed to ANSI/UL 1449, 4th Edition. Features: Three modes of protection: L-G, L-L, L-N; TPMOV® surge protection technology; Green LED indicator provides status of protection; Type 4X watertight and UV resistant plastic enclosure; 3-year product warranty; $7,500 connected equipment warranty for 3 years; UL Listed to ANSI/UL 1449 5th edition; NA
