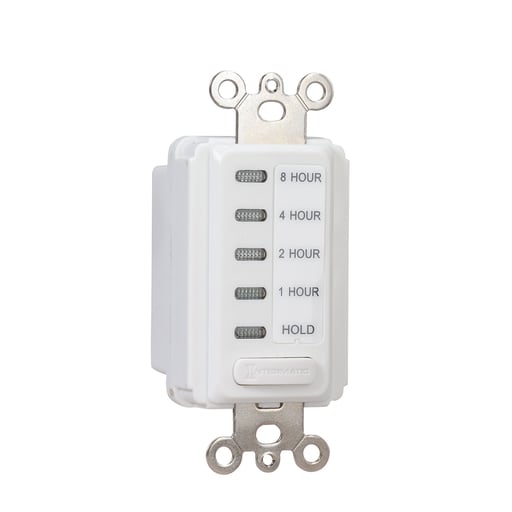

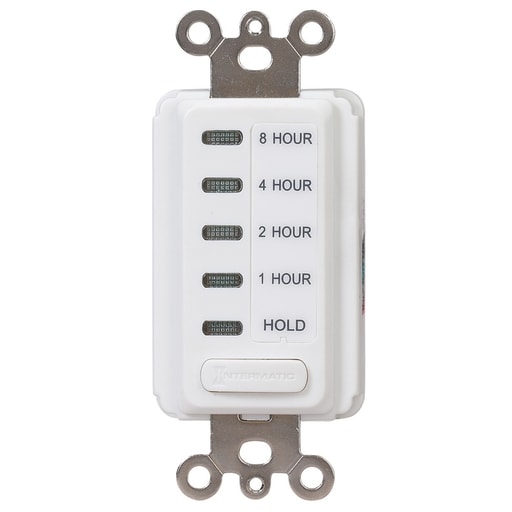

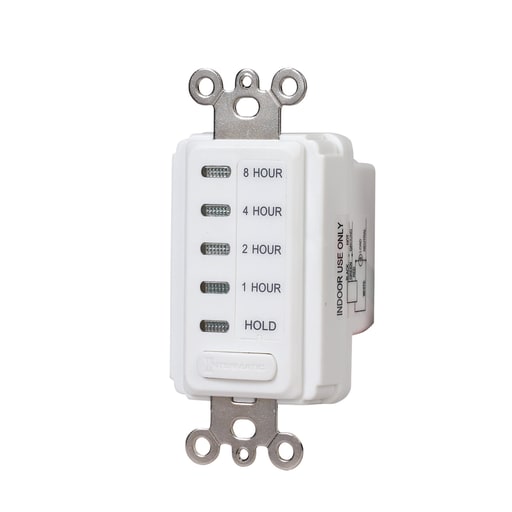

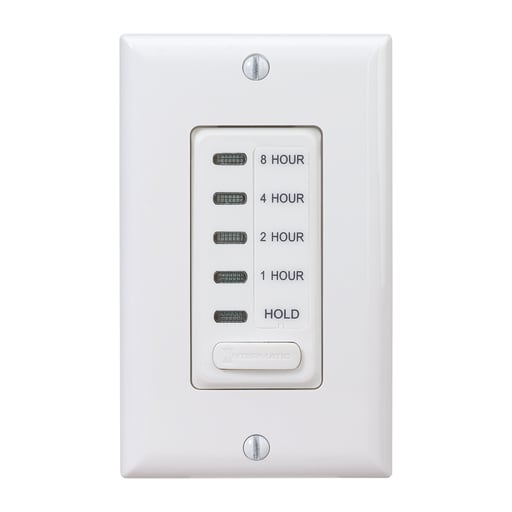

Intermatic, Inc - Intermatic EI220W 1/2/4/8 Hour 120 VAC 60 Hz 1-Pole White Electronic Auto-Off Timer with Hold

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275095274

  • Amperage - 15 Amp

  • Applications - Indoor, CFLs Lighting, LED Lighting, Fans, HVACR

  • Catalog Number - EI220W

  • Color - White

Packaging

  • 1 ea

EAN

00078275095274

Part #

128731

Catalog #

EI220W

Commercial reference

EI220W

12-Digit UPC:

078275095274

Amperage:

15 Amp

Applications:

Indoor, CFLs Lighting, LED Lighting, Fans, HVACR

Catalog Number:

EI220W

Color:

White

Country of Origin:

China

Depths:

1.438 Inch

ERP_productname:

INTM EI220W WH ELECTR CNTDWN TMR 1-2-4-8HR

Family Brand Name:

Intermatic

Heights:

4-1/8 Inch

Input Voltage:

120 V

Material:

Thermoplastic

Mounting Type:

Wall Mount

Number of Poles:

1 Pole

Size:

2.79 HEIGHT X 1.75 WIDTH X 1.44 DEPTH IN, 70.86 HEIGHT X 44.45 WIDTH X 36.57 DEPTH MM

Type:

Electronic, Countdown, Auto Shut-Off, 1-Pole

Voltage:

120 Volt

Wattage:

1800 Watt

Widths:

1.688 in

SoneparProductId:

SKU_US_25693799

This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly. Features: No programming required; Provides silent operation in time ranges from One hour to 8 hours; Single-button time selection, with some models having a HOLD mode, for continuous ON operation; Replaces single-pole switches in a variety of applications; Incandescent/fluorescent/CFL/LED compatible; For use with decorator-style wall plate (not included); Requires neutral connection; NA
