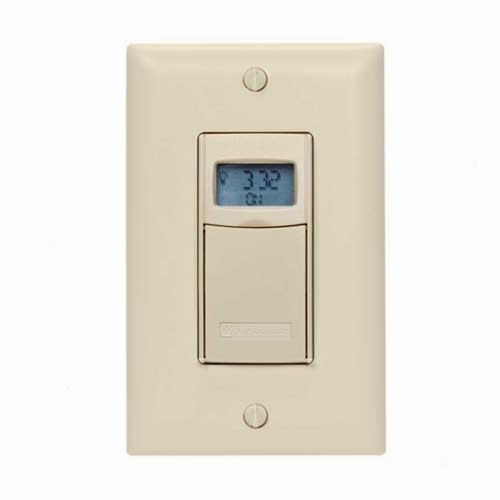

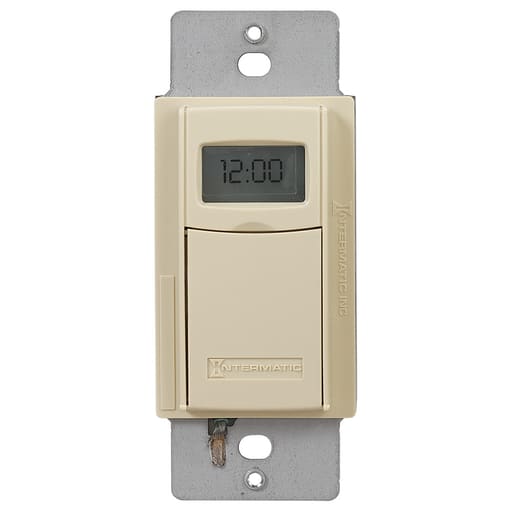

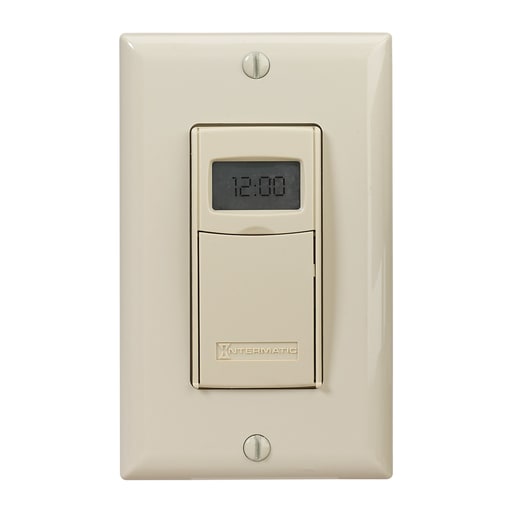

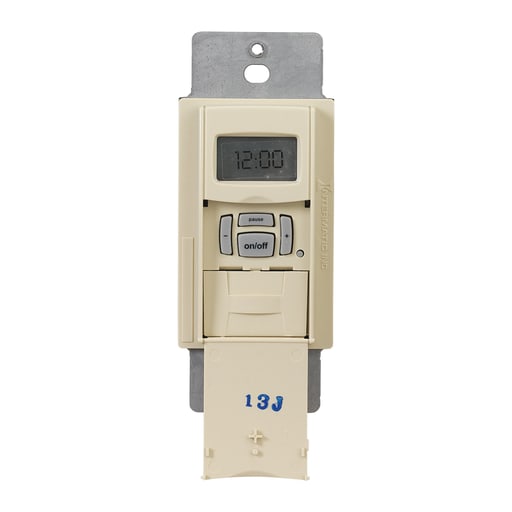

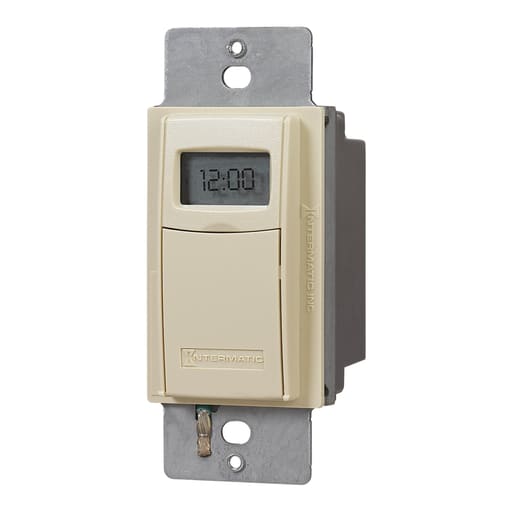

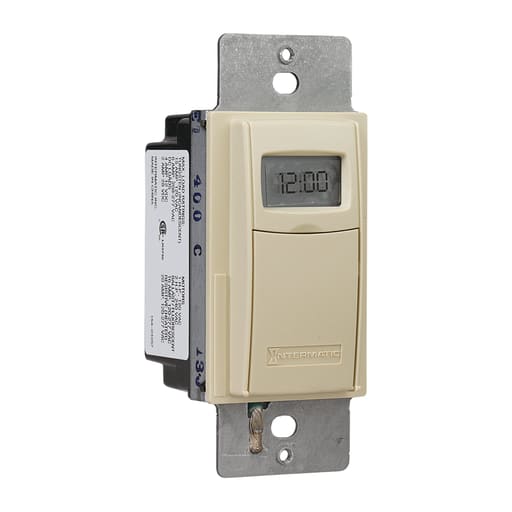

Intermatic, Inc - Intermatic EI400C 120 to 277 VAC 12 to 28 VDC 20 Amp 1-Pole 3-Way Ivory Digital Auto-Off In-Wall Timer

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275101371

  • Amperage - 20 Amp

  • Applications - CFL Lighting, LED Lighting and HVACR Applications

  • Catalog Number - EI400C

  • Color - Ivory

Packaging

  • 1 ea

EAN

00078275101371

Part #

199344

Catalog #

EI400C

Commercial reference

EI400C

12-Digit UPC:

078275101371

Amperage:

20 Amp

Applications:

CFL Lighting, LED Lighting and HVACR Applications

Catalog Number:

EI400C

Color:

Ivory

Country of Origin:

China

Depths:

1.188 Inch

ERP_productname:

INTM EI400C IVY DIG AUTO TMR

Family Brand Name:

Intermatic

Heights:

4-1/8 Inch

Input Voltage:

12-28 V

Mounting Type:

Wall Mount

Number of Poles:

1 Pole

Size:

2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM

Type:

Decorator Digital Auto-Off In-Wall

Voltage:

127 Volt

Wattage:

5540 Watt

Widths:

1.75 in

SoneparProductId:

SKU_US_25415350

Offering a programmable countdown time between one second and 24 hours, this versatile timer can handle any application, regardless of load type. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly. Features: Programmable countdown time interval from one second to 24 hours; Settings stored in non-volatile memory; Optional audible and/or visual warning of impending load switch OFF; Lockable settings help avoid unintended changes; Single-pole or 3-way switch compatible installation; Incandescent/fluorescent/CFL/LED compatible; Isolated switch allows timer to be used with any load type including AC and DC loads; Replaceable CR2 lithium battery provides up to three years of operation; No neutral wire connection enables easy retrofitting and quicker installation; 24-hour programming allows for continuous operation
