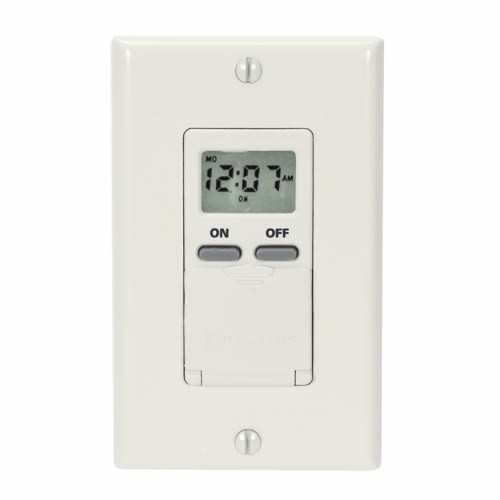

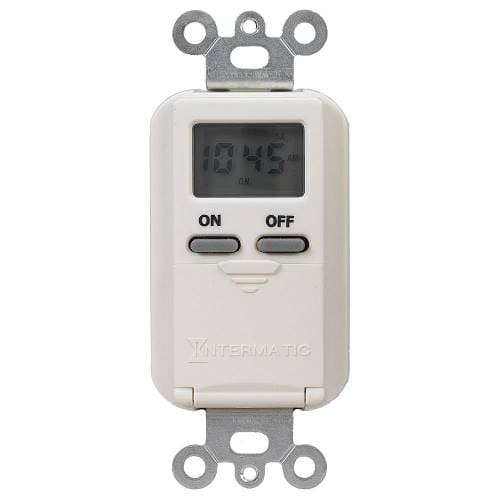

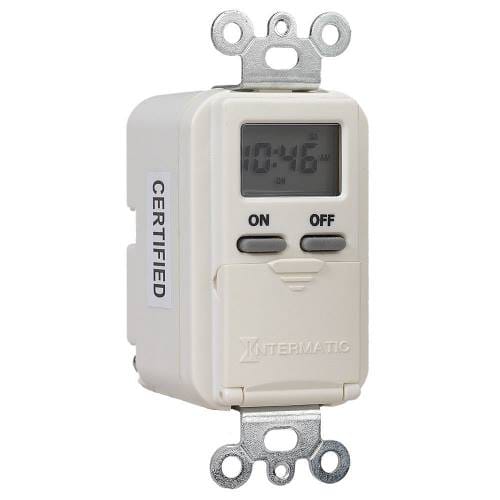

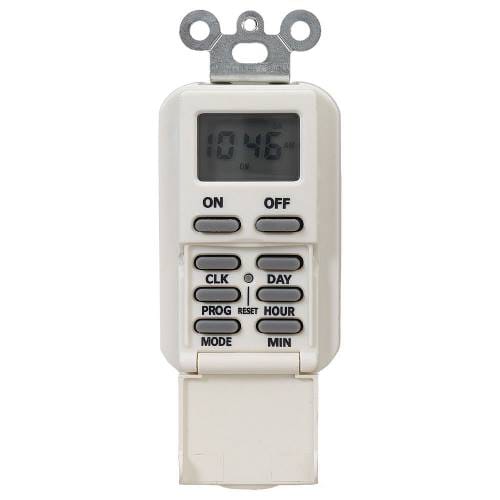

Intermatic, Inc - Intermatic EI500LAC 7-Day 120 VAC 60 Hz 15 Amp Light Almond Programmable Timer

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275105225

  • Amperage - 15 Amp

  • Applications - Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting, LED Lighting

  • Catalog Number - EI500LAC

  • Color - Light Almond

Packaging

  • 1 ea

EAN

00078275105225

Part #

155502

Catalog #

EI500LAC

Commercial reference

EI500LAC

12-Digit UPC:

078275105225

Amperage:

15 Amp

Applications:

Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting, LED Lighting

Catalog Number:

EI500LAC

Color:

Light Almond

Country of Origin:

China

Depths:

1.438 Inch

ERP_productname:

INTM EI500LAC ALM DIG 7DAY TIMER

Family Brand Name:

Intermatic

Heights:

4-1/8 Inch

Input Voltage:

125 V

Material:

Plastic

Mounting Type:

Wall Mount

Number of Poles:

1 Pole

Size:

2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM

Type:

Decorator

Voltage:

120 Volt

Wattage:

1875 Watt

Widths:

1.75 in

SoneparProductId:

SKU_US_25624570

For installation on 15 A circuits, this timer provides 24-hour or 7-day programming of lights, fans, pumps and other medium-duty loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly. Features: 7-day programmable schedules with 14 ON/OFF events; Random mode varies ON/OFF schedule to provide a \"lived-in\" appearance; Single-pole circuit; Incandescent/fluorescent/CFL/LED compatible; Built-in rechargeable, non-serviceable battery backup; Requires neutral connection; Backlit LCD display; Decorator switch plate not included; NA
