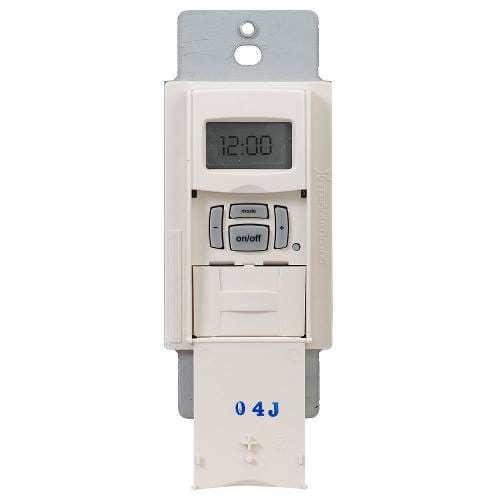

Intermatic, Inc - Intermatic EI600LAC 7-Day 120 to 277 VACb12 to 28 VDC 1-Pole 3-Way Light Almond Digital In-Wall Timer

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275101425

  • Amperage - 15/20 Amp

  • Applications - Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting and LED Lighting Applications

  • Catalog Number - EI600LAC

  • Color - Almond

Packaging

  • 1 ea

EAN

00078275101425

Part #

205311

Catalog #

EI600LAC

Commercial reference

EI600LAC

12-Digit UPC:

078275101425

Amperage:

15/20 Amp

Applications:

Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting and LED Lighting Applications

Catalog Number:

EI600LAC

Color:

Almond

Country of Origin:

Thailand

Depths:

1.813 Inch

ERP_productname:

INTM EI600LAC ALM DIG 7DAY TIMER

Family Brand Name:

Intermatic

Heights:

4-1/8 Inch

Input Voltage:

12-28 V

Material:

Plastic

Mounting Type:

Wall Mount

Number of Poles:

1 Pole

Size:

2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM

Type:

Digital In-Wall 7-Day Astronomic

Voltage:

127 Volt

Wattage:

5540 Watt

Widths:

1.75 in

SoneparProductId:

SKU_US_25452324

Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly. Features: Versatile 7-day programmable schedules with up to 40 ON/OFF events; Astronomic clock feature determines dawn and dusk times; Automatic Daylight Saving Time (DST) adjustment; Random mode varies ON/OFF schedule to provide a \"lived-in\" appearance; Single or 3-way switch compatible installation; Incandescent/fluorescent/CFL/LED compatible; Isolated switch allows timer to be used with any load type, including AC and DC loads; Replaceable CR2 lithium battery provides up to three years of operation; No neutral wire connection enables easy retrofitting and quicker installation; Decorator switch plate not included
