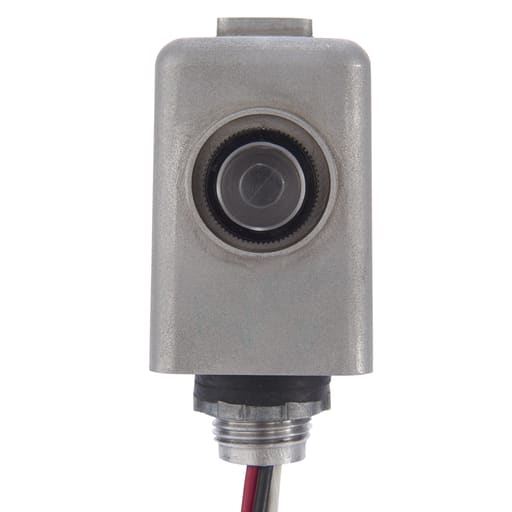

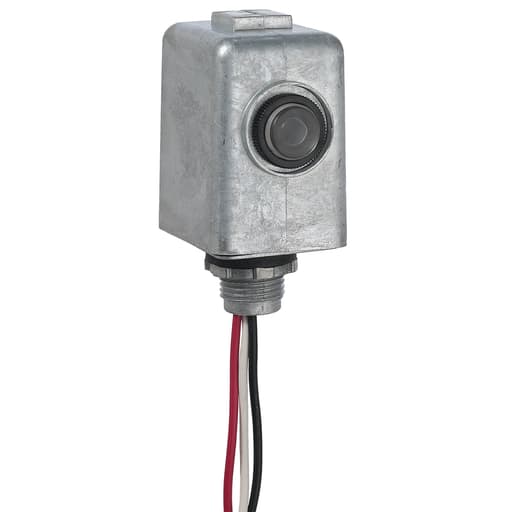

Intermatic, Inc - Intermatic EK4436SM 105 to 305 VAC 50/60 Hz 1000 W Stem Mount Electronic Photocontrol

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275148406

  • Applications - Dusk to Dawn Lighting Control, Indoor/Outdoor/Raintight

  • Catalog Number - EK4436SM

  • Color - Gray

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00078275148406

Part #

222415

Catalog #

EK4436SM

Commercial reference

EK4436SM

12-Digit UPC:

078275148406

Applications:

Dusk to Dawn Lighting Control, Indoor/Outdoor/Raintight

Catalog Number:

EK4436SM

Color:

Gray

Country of Origin:

Mexico

Depths:

2.188 Inch

ERP_productname:

INTM EK4436SM PHOTOCONTROL, ELECT,METAL

Enclosure:

Metal Outdoor

Family Brand Name:

Intermatic

Heights:

2.688 Inch

Input Voltage:

120-277 V

Material:

Metal

Mounting Type:

Stem

Sensor Type:

Silicon

Size:

1.75 W x 2.25 D x 3.38 H Inch

Tc Connection:

Color coded Leads

Type:

Electronic, Dusk-to-Dawn

Voltage:

120-277 VAC

Widths:

1.75 in

SoneparProductId:

SKU_US_25575776

These electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes, or outdoor lighting fixtures. Ideal for LED and induction fixtures with long-life expectations Features: Non-drift silicon light sensor with IR filter; DC relay with zero-crossing circuitry for extended life; Conformal coated PCB; 15-year design life; Exceeds 10,000 ON/OFF switching cycles; Fail ON mode; Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC); 255 J MOV surge protection element; 1?2\"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter; #18 AWG wire leads
