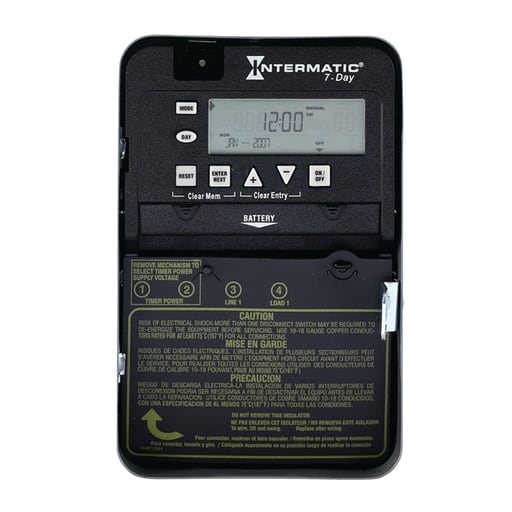

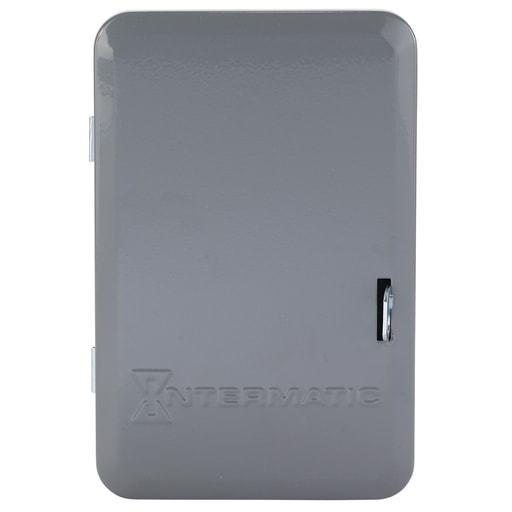

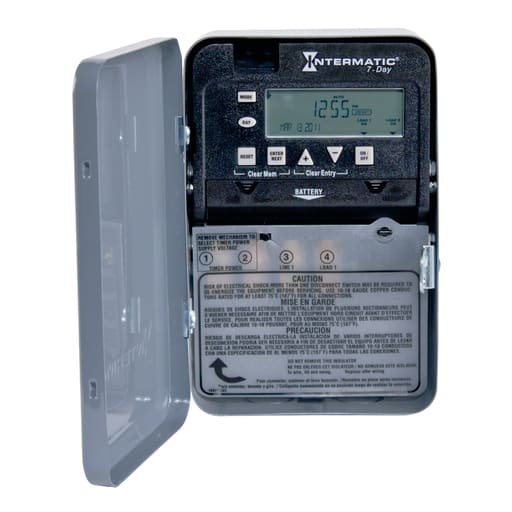

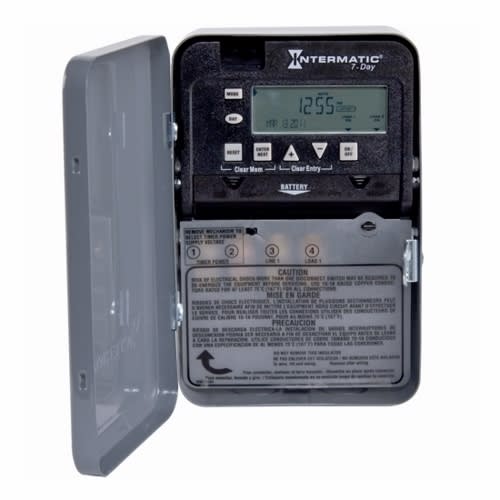

Intermatic, Inc - Intermatic ET1705C NEMA 1 Steel Case 7-Day 120 to 277 VAC 60 Hz 30 Amp SPST Electronic Time Switch

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275109841

  • Amperage - 30 Amp

  • Applications - Indoor, HVACR, Industrial

  • Catalog Number - ET1705C

  • Color - Gray

Packaging

  • 1 ea

EAN

00078275109841

Part #

164720

Catalog #

ET1705C

Commercial reference

ET1705C

12-Digit UPC:

078275109841

Amperage:

30 Amp

Applications:

Indoor, HVACR, Industrial

Catalog Number:

ET1705C

Color:

Gray

Country of Origin:

China

Depths:

3.437 Inch

ERP_productname:

INTM ET1705C 7-DAY 30 AMP SPST ELECTRONIC TIMESWITCH - CLOCK VOLTAGE 120-277V NEMA 1

Enclosure:

NEMA 1 Steel

Enclosure Rating:

1

Enclosure Type:

NEMA 1

Family Brand Name:

Intermatic

Heights:

7-7/8 Inch

Input Voltage:

208-277 V

Material:

Steel

Mounting Type:

Wall Mount

Number of Circuits:

1

Number of Poles:

1 Pole

Tc Connection:

Teeter Type

Type:

Electronic, 1-Pole

Voltage:

120-277 VAC

Widths:

5.125 in

SoneparProductId:

SKU_US_25323590

This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, 14 ON/OFF events per circuit, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day, and 7-day astronomic (sunrise to sunset) versions. Features: Selector switch to determine input voltage between 120-277 VAC; Up to 28 events total; To-the-minute accuracy; Temporary override or permanent manual override; Automatic Daylight Saving Time adjustment; NA
