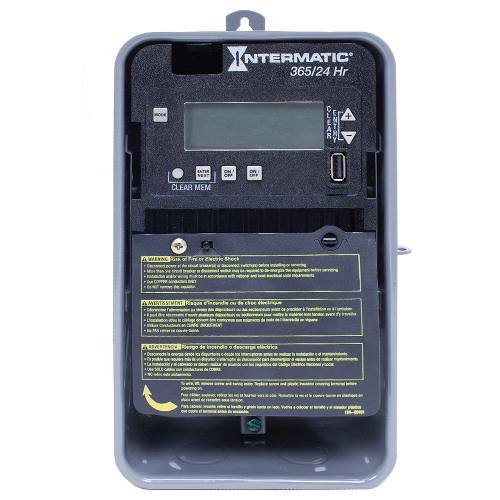

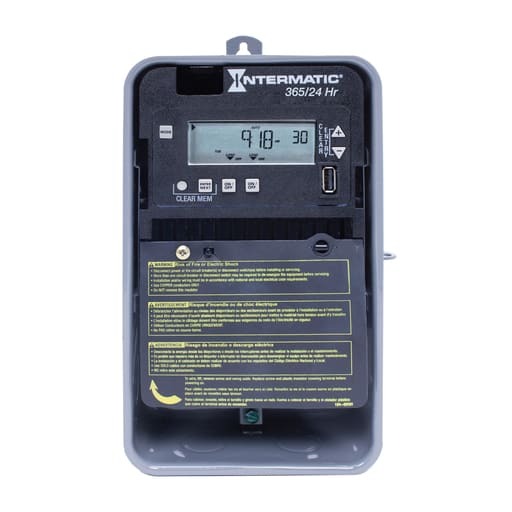

Intermatic, Inc - Intermatic ET2125CR T/S-ELEC,2CH,24HR,3R STL ENCL

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275148031

  • Amperage - 30 Amp

  • Applications - Indoor Lighting Control,Machinery & Pump Controls,Timing/Scheduling ON/OFF

  • Catalog Number - ET2125CR

  • Color - Gray

Packaging

  • 1 ea

EAN

00078275148031

Part #

142267

Catalog #

ET2125CR

Commercial reference

ET2125CR

12-Digit UPC:

078275148031

Amperage:

30 Amp

Applications:

Indoor Lighting Control,Machinery & Pump Controls,Timing/Scheduling ON/OFF

Catalog Number:

ET2125CR

Color:

Gray

Conductor Size:

14-8 AWG

Country of Origin:

Mexico

Depths:

3-5/8 Inch

ERP_productname:

INTM ET2125CR 24-HOUR/365 DAY 2-CIRCUIT ELECTRONIC CONTROL, 120-277 VAC, 2-SPST/DPST, OUTDOOR METAL ENCLOSURE

Enclosure:

Type 3R Steel

Family Brand Name:

NA

Heights:

10-1/8 Inch

Mounting Type:

Wall Mount

Number of Circuits:

2

Number of Poles:

1 Pole

Tc Connection:

Wire Lead

Type:

Electronic

Voltage:

120-277 VAC

Widths:

6.5 in

Wire Size:

18-10 AWG

SoneparProductId:

SKU_US_31490090

The ET2000 Series offers an easy-to-use user interface while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application. Features: 100-hour supercapacitor eliminates the need for batteries.; Up to 96 set points or events.; Up to 50 holiday blocks with schedule capabilities.; Automatic input voltage selection from 120 to 277 VAC, 60 Hz.; Additional mode of operation turns the ON/OFF buttons into 2-hour overrides.; Configurable outputs allow the control of various voltages and applications.; Relays incorporate zero-crossing technology to extend the life of the control.; Non-volatile EEPROM memory protects programming indefinitely.; LED compatible.; USB port makes transferring and saving of schedules easy.
