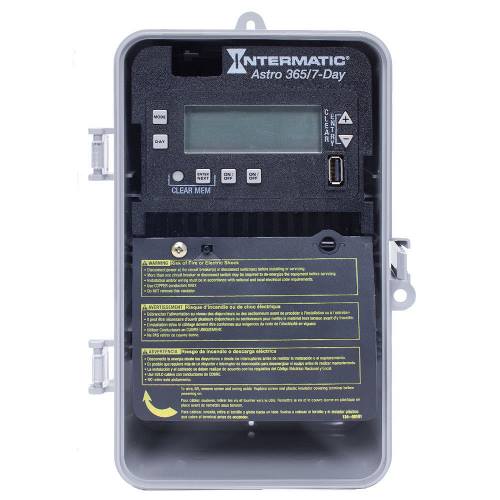

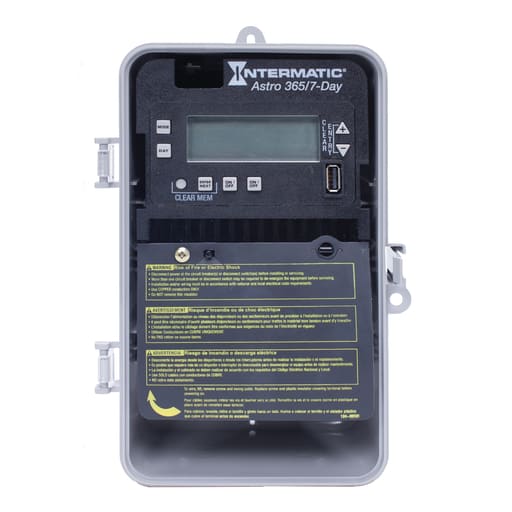

Intermatic, Inc - Intermatic ET2825CP T/S-ELEC,2CH,3R PLASTIC ENCL

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275147713

  • Amperage - 30 Amp

  • Applications - Machinery & Pump Controls,Outdoor Lighting Control,Timing/Scheduling ON/OFF

  • Catalog Number - ET2825CP

  • Color - Gray

Packaging

  • 1 ea

EAN

00078275147713

Part #

121384

Catalog #

ET2825CP

Commercial reference

ET2825CP

12-Digit UPC:

078275147713

Amperage:

30 Amp

Applications:

Machinery & Pump Controls,Outdoor Lighting Control,Timing/Scheduling ON/OFF

Catalog Number:

ET2825CP

Color:

Gray

Conductor Size:

14-8 AWG

Country of Origin:

Mexico

Depths:

4 Inch

ERP_productname:

INTM ET2825CP 2-CIRCUIT ASTRONOMIC ELECTRONIC TIME SWITCH

Enclosure:

Type 3R Plastic

Family Brand Name:

NA

Heights:

10 Inch

Input Voltage:

120-277 V

Mounting Type:

Wall Mount

Number of Circuits:

2

Number of Poles:

1 Pole

Tc Connection:

Wire Lead

Type:

Astronomic Electronic

Voltage:

120-277 VAC

Widths:

6.5 in

Wire Size:

18-10 AWG

SoneparProductId:

SKU_US_25208408

The ET2000 Series offers an easy-to-use user interface while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application. Features: 100-hour supercapacitor eliminates the need for batteries; Up to 96 set points or events; Up to 50 holiday blocks with schedule capabilities; Automatic input voltage selection from 120 to 277 VAC, 60 Hz; Additional mode of operation turns the ON/OFF buttons into 2-hour overrides; Configurable outputs allow the control of various voltages and applications; Relays incorporate zero-crossing technology to extend the life of the control; Non-volatile EEPROM memory protects programming indefinitely; LED compatible; USB port makes transferring and saving of schedules easy
