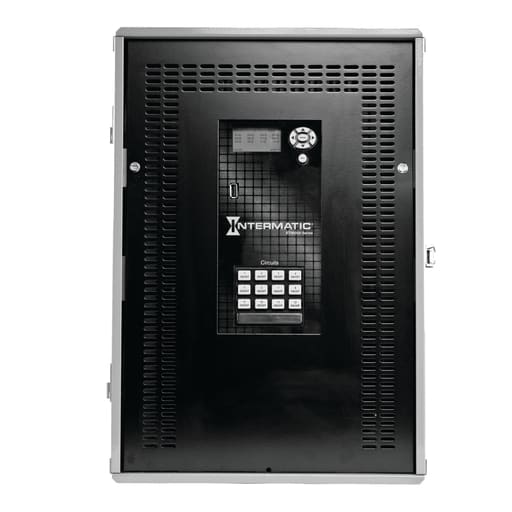

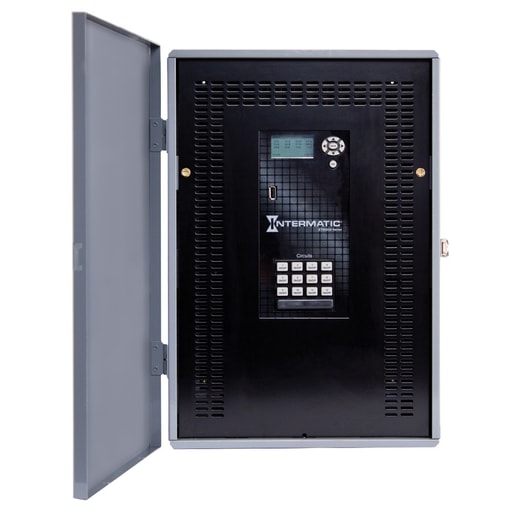

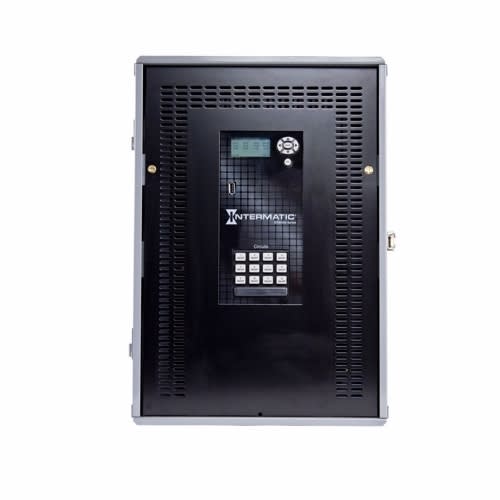

Intermatic, Inc - Intermatic ET91215CR 12 CKT TIME SW/OUTDOOR W/ETH

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275124936

  • Amperage - 20 Amp

  • Applications - General Purpose, Lighting, HVACR

  • Catalog Number - ET91215CR

  • Color - Black

Packaging

  • 1 ea

EAN

00078275124936

Part #

225853

Catalog #

ET91215CR

Commercial reference

ET91215CR

12-Digit UPC:

078275124936

Amperage:

20 Amp

Applications:

General Purpose, Lighting, HVACR

Catalog Number:

ET91215CR

Color:

Black

Country of Origin:

Mexico

Depths:

5.4 Inch

ERP_productname:

INTM ET91215CR 12-CIRCUIT 365-DAY ASTRONOMIC TIME SWITCH WITH ETHERNET IN A TYPE 3R STEEL ENCLOSURE

Enclosure:

Type 3R Steel

Family Brand Name:

Intermatic

Heights:

17.9 Inch

Input Voltage:

208-277 V

Mounting Type:

Wall Mount

Number of Circuits:

12

Number of Poles:

1 Pole

Size:

17.9 HEIGHT X 12.7 WIDTH X 5.4 DEPTH IN, 454 HEIGHT X 322 WIDTH X 138 DEPTH CM

Tc Connection:

Wire Lead

Type:

Astronomic, Electronic

Voltage:

120-277 VAC

Widths:

12.7 in

SoneparProductId:

SKU_US_30718390

The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. Features: Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz; Over 2,000 events plus holiday schedules; Allows for simple override control when paired with MS-101-WH Momentary Switch (sold separately); Advanced scheduling including relative events, such as fourth Thursday of November or first week of year; 30 A rated contacts; 100-hour supercapacitor eliminates the need for batteries; USB connection for uploading, downloading and transferring programs; Easy-to-follow on-screen menus for programming to-the-minute accuracy; Non-volatile memory protects programming indefinitely; Firmware can be upgraded in-field via USB or Ethernet; Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models
