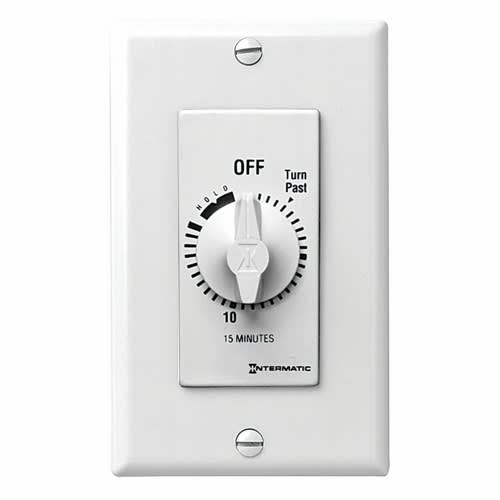

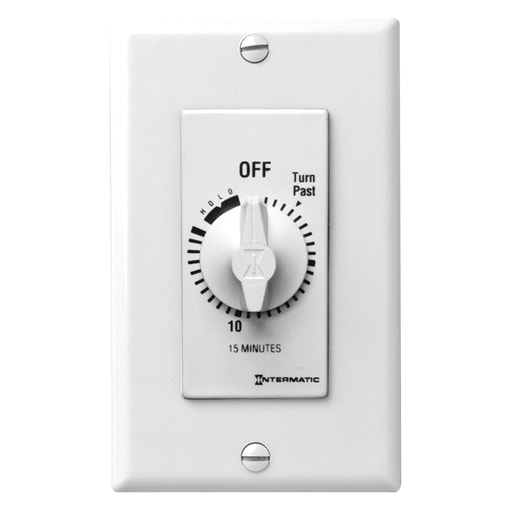

Intermatic, Inc - Intermatic FD15MHW 15 Minute 125 to 277 VAC 60 Hz SPST White Countdown Timer with 15 Minute Hold

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275185555

  • Amperage - 15 Amp

  • Applications - Air Movement & Ventilation,Indoor Lighting Control,Motor Control,Outdoor Lighting Control

  • Catalog Number - FD15MHW

  • Color - White

Packaging

  • 1 ea

EAN

00078275185555

Part #

153959

Catalog #

FD15MHW

Commercial reference

FD15MHW

12-Digit UPC:

078275185555

Amperage:

15 Amp

Applications:

Air Movement & Ventilation,Indoor Lighting Control,Motor Control,Outdoor Lighting Control

Catalog Number:

FD15MHW

Color:

White

Country of Origin:

Tunisia

Depths:

1-1/4 Inch

ERP_productname:

INTM FD15MHW 15MIN SPR WOUND TMR

Family Brand Name:

NA

Heights:

4-1/8 Inch

Input Voltage:

125-277 V

Material:

Plastic

Mounting Type:

Wall Mount

Number of Poles:

1 Pole

Product Category:

Home Improvement & Commercial Supplies - Electrical Switches & Dimmers

Product Type:

Home Improvement & Commercial Supplies - Electrical Switches & Dimmers

Size:

2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM

Tc Connection:

Teeter Type

Type:

Home Improvement & Commercial Supplies - Electrical Switches & Dimmers

Voltage:

277 Volt

Widths:

1.75 in

SoneparProductId:

SKU_US_25669384

The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly. Features: 15-Minute timer with hold; SPST (Single-Pole Single-Throw); Breaks circuit at end of timing cycle; No electricity required to operate; Replaces any standard or decorator single- or multi-gang wall switch; Automatically limits ON time for energy consuming loads; Quick and easy installation; Time-saving up front terminal connection with teeter-type terminals; Incandescent/fluorescent/CFL/LED compatible; No neutral connection is required
