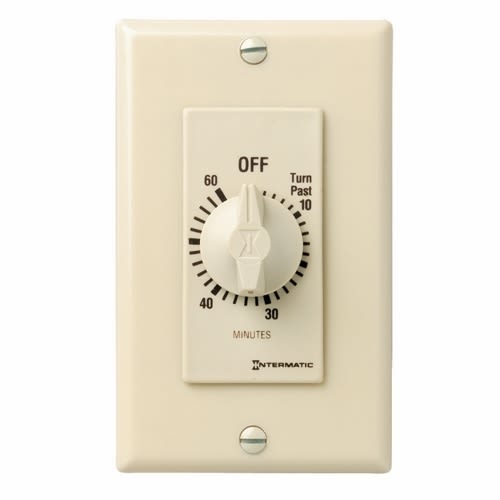

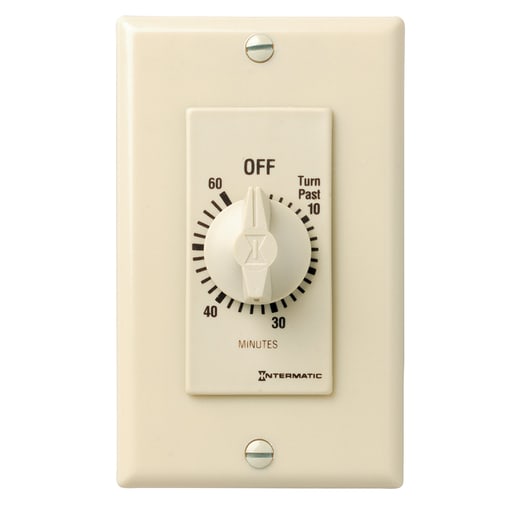

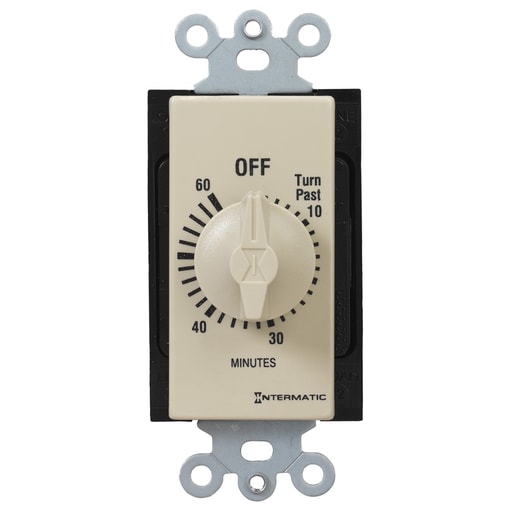

Intermatic, Inc - Intermatic FD60MC 60 Minute 125 to 277 VAC 60 Hz SPST Ivory Countdown Timer

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275005051

  • Amperage - 15 Amp

  • Applications - Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR

  • Catalog Number - FD60MC

  • Color - Ivory

Packaging

  • 1 ea

EAN

00078275005051

Part #

106965

Catalog #

FD60MC

Commercial reference

FD60MC

12-Digit UPC:

078275005051

Amperage:

15 Amp

Applications:

Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR

Catalog Number:

FD60MC

Color:

Ivory

Country of Origin:

Tunisia

Depths:

1-1/4 Inch

ERP_productname:

INTM FD60MC 60MIN SPRING WOUNDTIMER

Family Brand Name:

Intermatic

Heights:

4-1/8 Inch

Input Voltage:

125-277 V

Mounting Type:

Wall Mount

Number of Poles:

1 Pole

Size:

2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM

Tc Connection:

Teeter Type

Type:

Decorator, Spring Wound, Auto-Off, Mechanical

Voltage:

125-277 VAC

Widths:

1.75 in

SoneparProductId:

SKU_US_25322079

The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. Features: 60-minute timer; SPST (Single-Pole Single-Throw); No electricity required to operate; Replaces any standard or decorator single- or multi-gang wall switch; Automatically limits ON time for energy consuming loads; Quick and easy installation; Time-saving up front terminal connection with teeter-type terminals; Breaks circuit at end of timing cycle; Incandescent/fluorescent/CFL/LED compatible; No neutral connection is required
