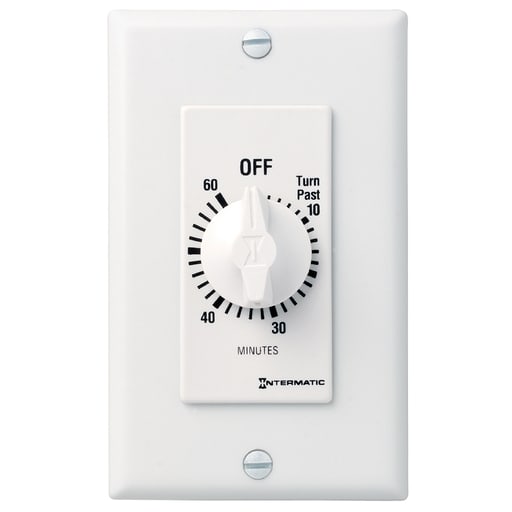

Intermatic, Inc - Intermatic FD60MWC 60 Minute Auto-Off Springwound Timer

CopyCopy
Intermatic, Inc - Intermatic FD60MWC 60 Minute Auto-Off Springwound Timer

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275005068

  • Amperage - 15 Amp

  • Applications - For Residential use

  • Catalog Number - FD60MWC

  • Color - White

Packaging

  • 1 ea

EAN

00078275005068

Part #

106994

Catalog #

FD60MWC

Commercial reference

FD60MWC

12-Digit UPC:

078275005068

Amperage:

15 Amp

Applications:

For Residential use

Catalog Number:

FD60MWC

Color:

White

Country of Origin:

Tunisia

Depths:

1-1/4 Inch

ERP_productname:

INTM FD60MWC 60MIN SPR WOUND TIMER

Family Brand Name:

Intermatic

Heights:

4-1/8 Inch

Input Voltage:

125-277 V

Material:

Plastic

Mounting Type:

Wall Mount

Number of Poles:

1 Pole

Size:

2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM

Tc Connection:

Teeter Type

Type:

Mechanical

Voltage:

125-277 VAC

Widths:

1.75 in

SoneparProductId:

SKU_US_25335234

The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. Features: 60-minute timer; SPST (Single-Pole Single-Throw); No electricity required to operate; Replaces any standard or decorator single- or multi-gang wall switch; Automatically limits ON time for energy consuming loads; Quick and easy installation; Time-saving up front terminal connection with teeter-type terminals; Breaks circuit at end of timing cycle; Incandescent/fluorescent/CFL/LED compatible; No neutral connection is required
